Article specifications
| Part no. | 97706 |
|---|---|

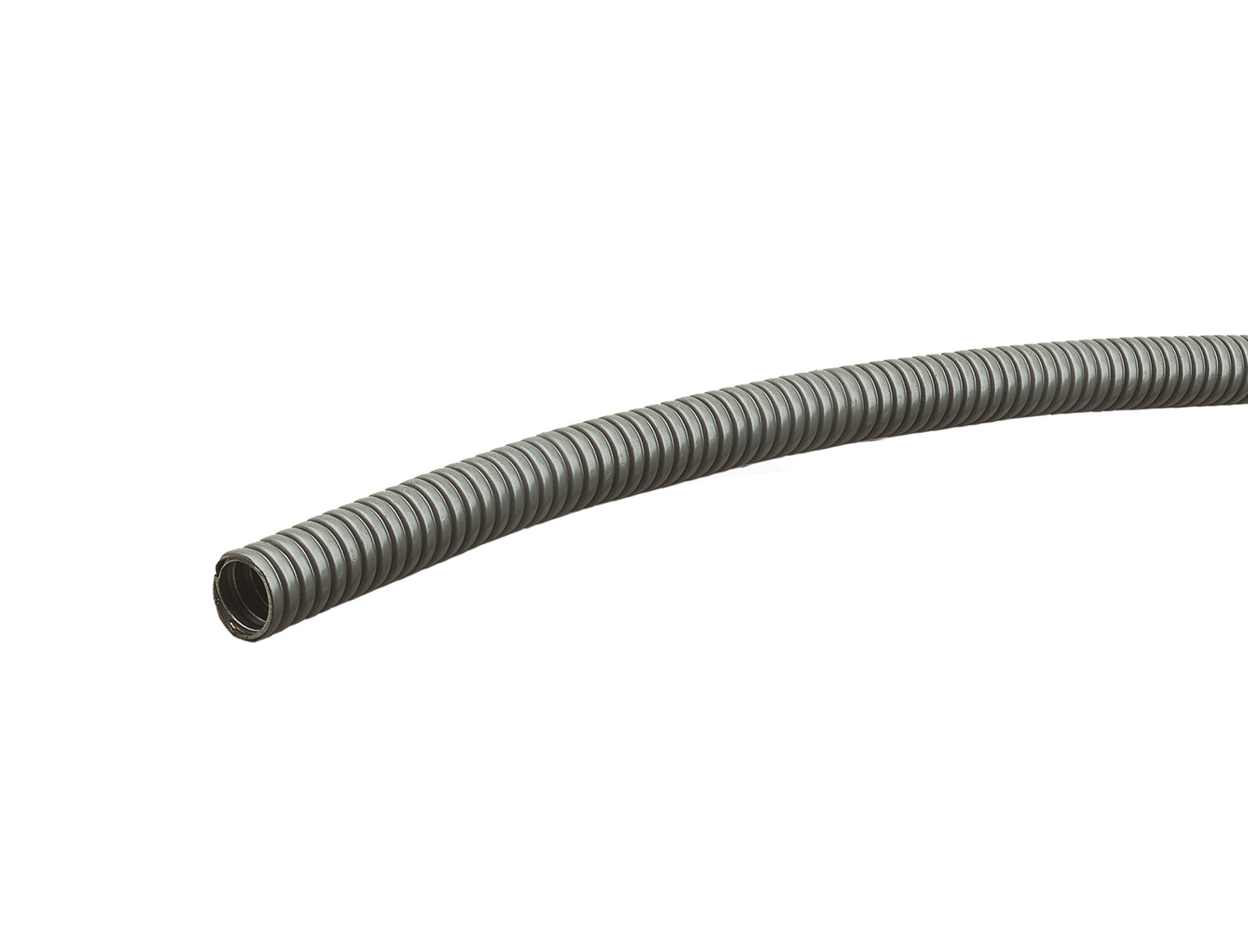

| Item description | Wendelgewickelter-Metallschlauch SPR-PVC-AS 27 (50,0m) black |
| Outer diameter, approx. (mm) | 27 |
| Colour | black |
| Weight, approx. (kg) | 0,36 |
| Inner diameter (mm) | 22,0 |
| Metres per packaging unit | 50 |
| Custom cut lengths available | no |
| EAN / GTIN | 4060892381065 |
| Customs tariff number | 83071000 |
Manufacturer technical information
Spiral wound metallic tube acc. to DIN 49012, Design 1, tested acc. to DIN EN IEC 61386-23
Temperature range
-25°C to +90°C
short term up to +100°C
short term up to +100°C
Protection class
IP 68
Structure
- Material: Cold strip acc. to DIN 1624 St 2, Fe/ Zn 3, galvanized
- Outer sheath material: Polyvinyl chloride (PVC)
- with latched profile
Properties
- silicone-free
- cadmium-free
- watertight
- resistant to: weather-resistant, acids, oil, seawater
Notes
- Suitable connection glands: MTG-US, MTG-LI
Application
- Machine and plant construction
- Automation technology
- Control cabinet construction
- Vehicle construction and shipbuilding
