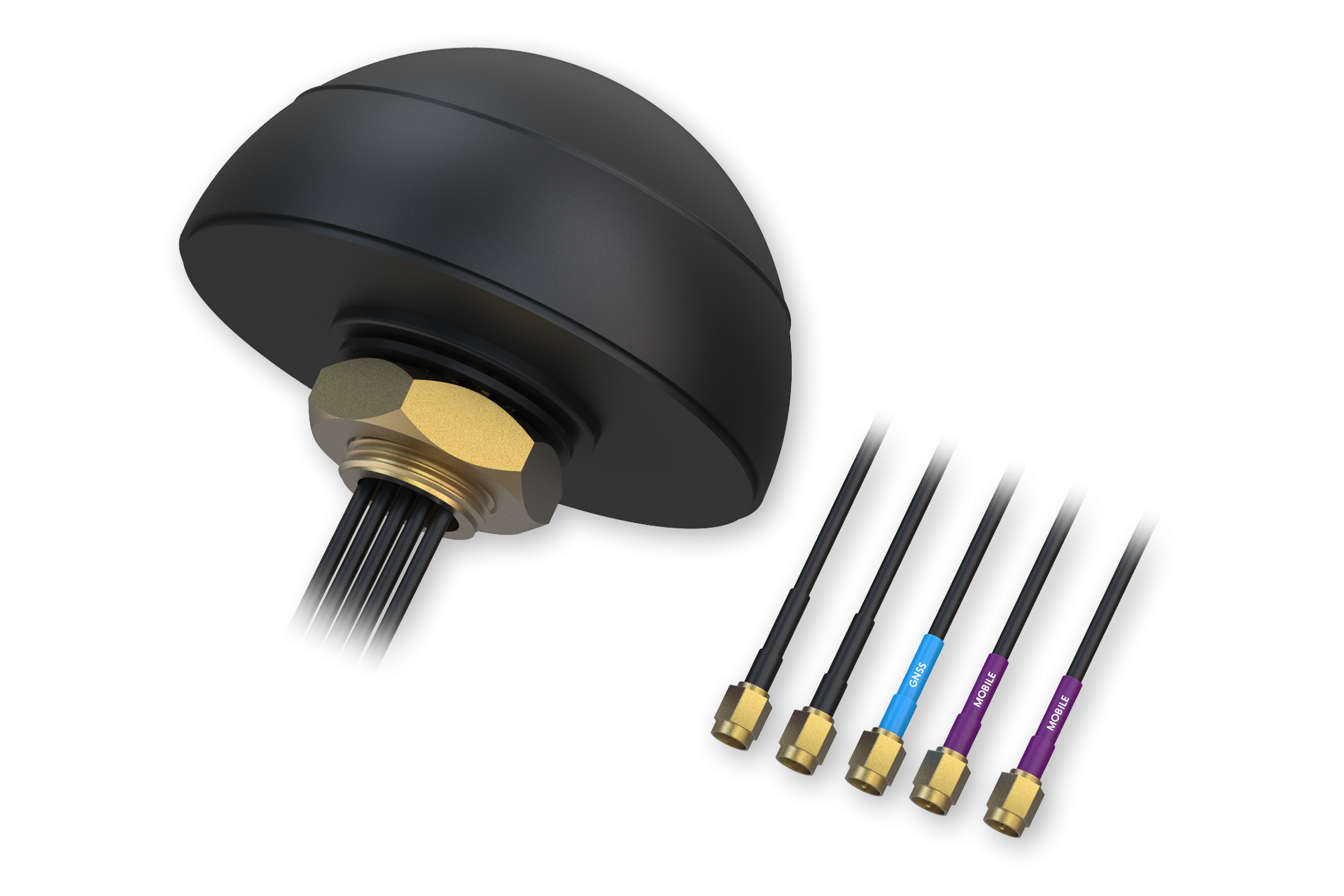

Teltonika PR1KCO28 – Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna
Manufacturer order code: PR1KCO28
Technical specifications
MECHANICAL/ENVIRONMENTAL
| Mounting method | Screw |
|---|
| Radome ingress protection rating | IP65 (exclude cable outlet) |
|---|
| Radome material | ABS |
|---|
| Housing dimensions | Ø 110 x 55 mm |
|---|
| Cable | 5x RG174, 3000 mm |
|---|
| Operating temperature | - 40 ~ +85 °C |
|---|
| Weight | 535 ± 10 g |
|---|
| UV resistance | ✓ |
|---|
| RoHS compliant | ✓ |
|---|
GNSS ANTENNA
| Frequency range | 1575.42 – 1610 MHz |
|---|
| Polarisation | RHCP |
|---|
| LNA Gain | 28 ± 2 dB |
|---|
| LNA noise figure | ≤1.5 dB |
|---|
| Impedance | 50 Ω |
|---|
| Supply voltage | 3 – 5 VDC |
|---|
| Current consumption | < 15 mA |
|---|
| Connector type and count | SMA Male |
|---|
LTE MIMO ANTENNA
| Frequency range | 698 – 960, 1710 – 2690 MHz |
|---|
| Polarisation | Linear |
|---|
| Gain | 3.0 dBi |
|---|
| VSWR | < 3.0 |
|---|
| Impedance | 50 Ω |
|---|
| Connector type and count | 2x SMA Male |
|---|
WI-FI ANTENNA
| Frequency range | 2400 – 2483.5, 4900 – 5825 MHz |
|---|
| Polarisation | Linear |
|---|
| Gain | 2.0 dBi |
|---|
| VSWR | < 2.5 |
|---|
| Impedance | 50 Ω |
|---|
| Connector type and count | 2x RP-SMA Male |
|---|
Compatible models listed by the manufacturer
RUT200, RUT241, RUT260, RUT261, RUT281, RUT361, RUT901, RUT906, RUT951, RUT951 PoE+, RUT956, RUTM09, RUTM10, RUTM11, RUTM50, RUTM52, RUTM54, RUTM55, RUTM56, RUTX09, RUTX10, RUTX11, RUTX12, RUTX14, RUTXR1
Documentation and downloads
Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.
