Teltonika PR1KCS28 – Kombi SISO Mobilfunk/GNSS/WLAN Dach SMA Antenne

Combined networking antennas

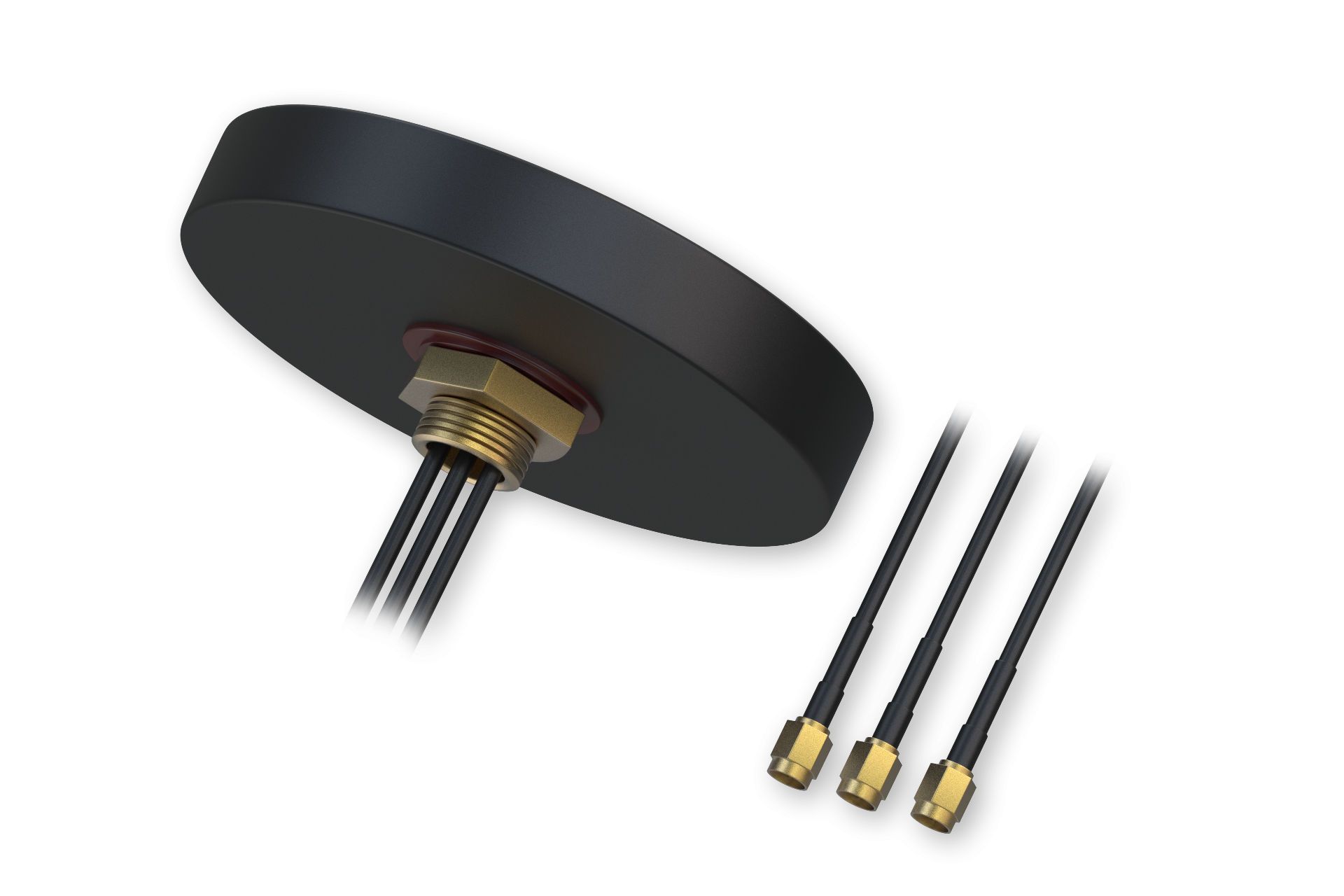

Teltonika PR1KCS28 – Combo SISO Mobile/GNSS/Wi-Fi Roof SMA Antenna

Price on request

Teltonika PR1KCS28 – Combo SISO Mobile/GNSS/Wi-Fi Roof SMA Antenna. Key specifications for your installation:

Frequency range: 1575 – 1610 MHz
Gain: 3.5 dBi
Mounting method: Screw

View all specifications and documents ↓

SKU: TN-PR1KCS28 Category: Combined networking antennas Brand:

Delivery time: 5–7 business days

Request a quote →

Delivery time and availability will be confirmed in your quote.

For longer lengths or custom cable lengths, please contact us.
Contact us / Request a quote ↗Product details are filled in automatically. Tell us the quantity or length you need.

Request a quote for this product

Request a quote with no obligation — no account needed.

Teltonika PR1KCS28 – Combo SISO Mobile/GNSS/Wi-Fi Roof SMA Antenna

Teltonika PR1KCS28 – Combo SISO Mobile/GNSS/Wi-Fi Roof SMA AntennaSKU: TN-PR1KCS28

Please include the model or order code, quantity and required regional version. We will confirm price, availability and delivery with your quote.

Teltonika PR1KCS28 – Combo SISO Mobile/GNSS/Wi-Fi Roof SMA Antenna

Manufacturer order code: PR1KCS28

Technical specifications

MECHANICAL/ENVIRONMENTAL

Mounting method	Screw
Radome ingress protection rating	IP67 (exclude cable outlet)
Radome material	ABS
Housing dimensions	Ø 80.5 x 15.2 mm
Cable	3x RG174, 3000 mm
Operating temperature	- 40 ~ +85 °C
Weight	215 ± 10 g
UV resistance	✓
RoHS compliant	✓

GNSS ANTENNA

Frequency range	1575 – 1610 MHz
Polarisation	RHCP
LNA Gain	28 dBi
LNA noise figure	1.5 dB
VSWR	≤ 1.5
Impedance	50 Ω
Supply voltage	2.7 – 5.0 ± 0.5 VDC
Current consumption	< 15 mA
Connector type and count	SMA Male

LTE ANTENNA

Frequency range	617 – 960, 1710 – 2690 MHz
Polarisation	Linear
Radiation pattern	Omni - Directional
Gain	3.5 dBi
VSWR	≤ 1.5
Impedance	50 Ω
Connector type and count	SMA Male

WI-FI ANTENNA

Frequency range	2350 – 2500 MHz
Polarisation	Linear
Radiation pattern	Omni - Directional
Gain	2.5 dBi
VSWR	≤ 1.5
Impedance	50 Ω
Connector type and count	RP-SMA Male

Compatible models listed by the manufacturer

TRB246, TRB247, TRB256

Documentation and downloads

Manufacturer page, datasheet and downloads

Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.

Manufacturer	Teltonika Networks
Manufacturer order code	PR1KCS28
MECHANICAL/ENVIRONMENTAL – Mounting method	Screw
MECHANICAL/ENVIRONMENTAL – Radome ingress protection rating	IP67 (exclude cable outlet)
MECHANICAL/ENVIRONMENTAL – Radome material	ABS
MECHANICAL/ENVIRONMENTAL – Housing dimensions	Ø 80.5 x 15.2 mm
MECHANICAL/ENVIRONMENTAL – Cable	3x RG174, 3000 mm
MECHANICAL/ENVIRONMENTAL – Operating temperature	– 40 ~ +85 °C
MECHANICAL/ENVIRONMENTAL – Weight	215 ± 10 g
MECHANICAL/ENVIRONMENTAL – UV resistance	✓
MECHANICAL/ENVIRONMENTAL – RoHS compliant	✓
Frequency range	1575 – 1610 MHz
Polarisation	RHCP
LNA Gain	28 dBi
LNA noise figure	1.5 dB
VSWR	≤ 1.5
Impedance	50 Ω
Supply voltage	2.7 – 5.0 ± 0.5 VDC
Current consumption	< 15 mA
Connector type and count	SMA Male
LTE ANTENNA – Frequency range	617 – 960, 1710 – 2690 MHz
LTE ANTENNA – Polarisation	Linear
Radiation pattern	Omni – Directional
Gain	3.5 dBi
WI-FI ANTENNA – Frequency range	2350 – 2500 MHz
WI-FI ANTENNA – Gain	2.5 dBi
WI-FI ANTENNA – Connector type and count	RP-SMA Male
