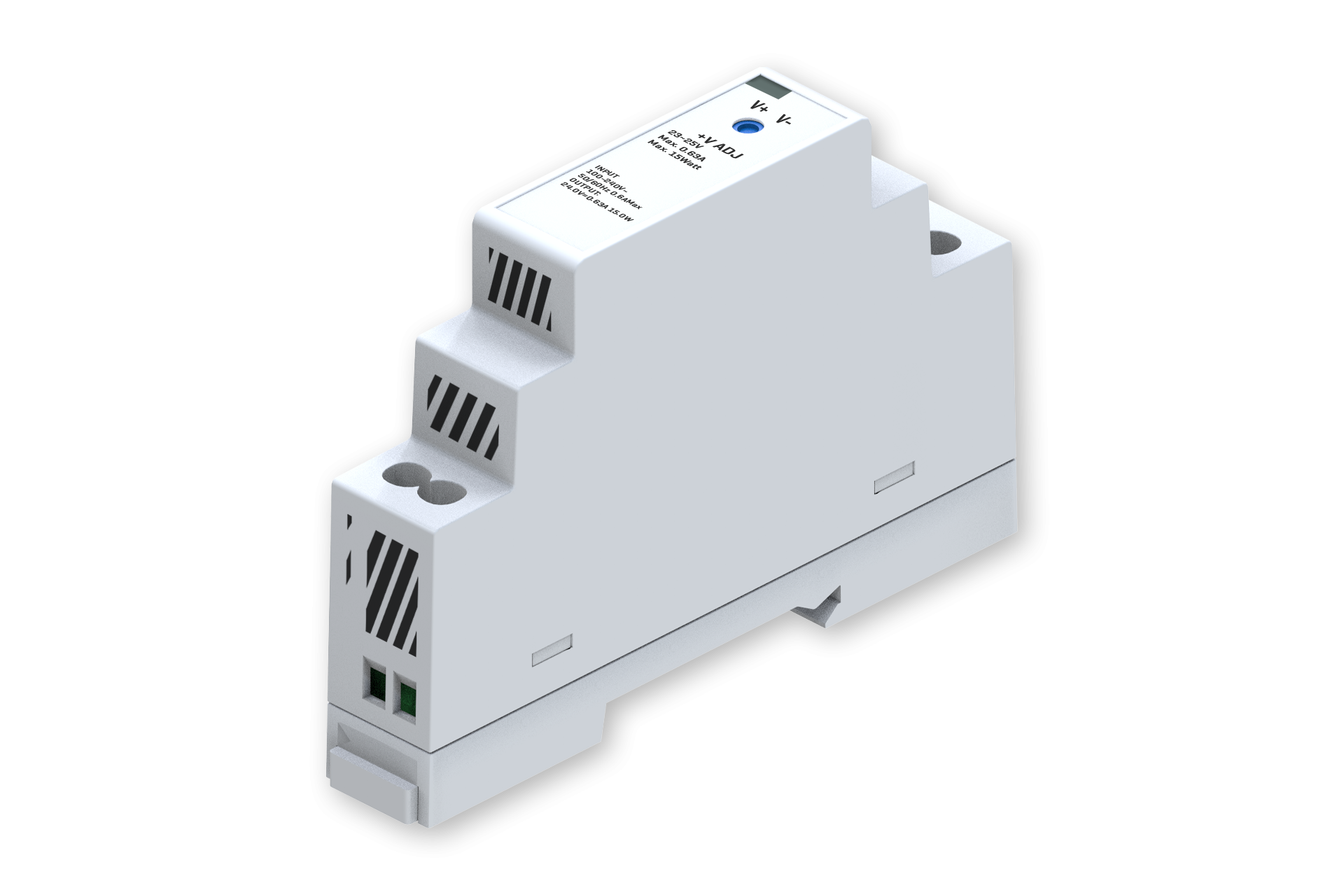

Teltonika PR321NP0 – Hutschienen-Netzteil, 15 W, 24 V

DIN rail power supplies

Teltonika PR321NP0 – DIN Rail Power Supply, 15 W, 24 V

Price on request

Teltonika PR321NP0 – DIN Rail Power Supply, 15 W, 24 V. Key specifications for your installation:

Output voltage: 24 VDC
Input voltage: 90 – 264 VAC
Input frequency: 50/60 Hz

View all specifications and documents ↓

SKU: TN-PR321NP0 Category: DIN rail power supplies Brand:

Delivery time: 5–7 business days

Request a quote →

Delivery time and availability will be confirmed in your quote.

For longer lengths or custom cable lengths, please contact us.
Contact us / Request a quote ↗Product details are filled in automatically. Tell us the quantity or length you need.

Request a quote for this product

Request a quote with no obligation — no account needed.

Teltonika PR321NP0 – DIN Rail Power Supply, 15 W, 24 V

Teltonika PR321NP0 – DIN Rail Power Supply, 15 W, 24 VSKU: TN-PR321NP0

Please include the model or order code, quantity and required regional version. We will confirm price, availability and delivery with your quote.

Teltonika PR321NP0 – DIN Rail Power Supply, 15 W, 24 V

Manufacturer order code: PR321NP0

Technical specifications

Technical Data

Input voltage	90 – 264 VAC
Input frequency	50/60 Hz
Input current	0.5 A
Output voltage	24 VDC
Output current	0.63 A
Input voltage absolute maximum	85 – 264 VAC
Input frequency absolute maximum	47 – 63 Hz
Inrush currect	45 A
Output voltage absolute maximum	21.6 – 29 VDC
Short circuit protection	✓
HIPOT (dielectric withstand test) – Primary to Secondary	3 kVAC
Input connector	Screw terminal
Output connector	Screw terminal
Weight	78 g
Certification	Safety: EN 62368-1:2014+A11:2017, BS EN 62368-1:2014+A11:2017 EMC: EN 55032:2015+A11:2020+A1:2020, EN 55035:2017+A11:2020, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021, BS EN 55032:2015+A11:2020, BS EN 55035:2017+A11:2020, BS EN IEC 61000-3-2:2019+A1:2021, BS EN 61000-3-3:2013+A1:2019

Compatible models listed by the manufacturer

RUTM16, RUTM20, RUTM30, TRB236, TRB246, TRB247, TRB256, TSW010, TSW030, TSW114, TSW210, TSW212, TSW304

Documentation and downloads

Manufacturer page, datasheet and downloads

Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.

Manufacturer	Teltonika Networks
Manufacturer order code	PR321NP0
Feature 1	Power: 15 W
Feature 2	Voltage: 24 V
Input voltage	90 – 264 VAC
Input frequency	50/60 Hz
Input current	0.5 A
Output voltage	24 VDC
Output current	0.63 A
Input voltage absolute maximum	85 – 264 VAC
Input frequency absolute maximum	47 – 63 Hz
Inrush currect	45 A
Output voltage absolute maximum	21.6 – 29 VDC
Short circuit protection	✓
HIPOT (dielectric withstand test) – Primary to Secondary	3 kVAC
Input connector	Screw terminal
Weight	78 g
