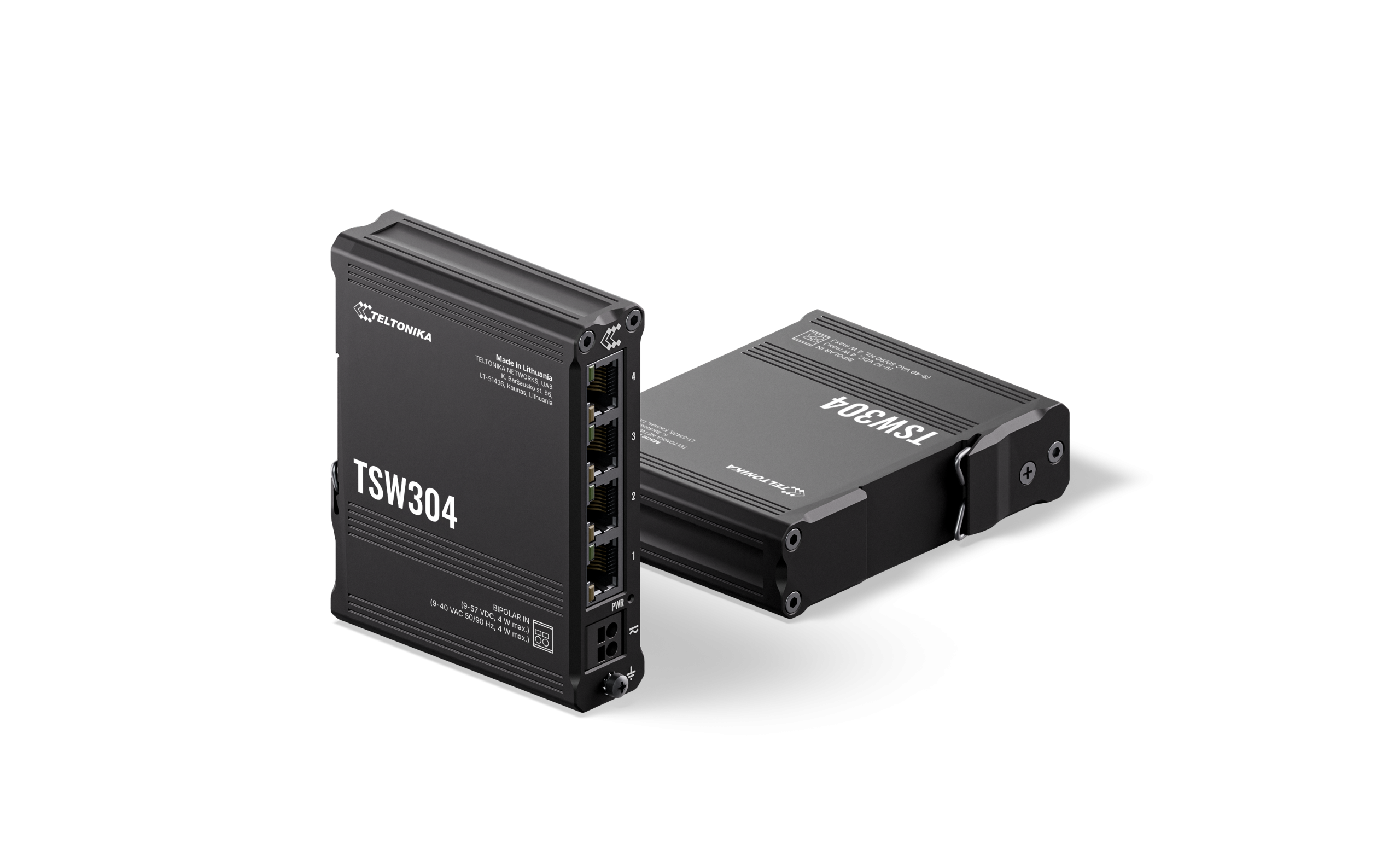

Teltonika TSW304 – Ethernet switch

Price on request

Teltonika TSW304 – Ethernet switch. Key specifications for your installation:

Connector: 2-pin industrial DC power socket
Input voltage range: 7 - 57 VDC; 9 - 40 VAC
Ethernet: 4 x RJ45 ports, 10/100/1000 Mbps

View all specifications and documents ↓

SKU: TN-TSW304 Category: Industrielle Switches Brand:

Delivery time: 5–7 business days

Request a quote →

Delivery time and availability will be confirmed in your quote.

For longer lengths or custom cable lengths, please contact us.
Contact us / Request a quote ↗Product details are filled in automatically. Tell us the quantity or length you need.

Request a quote for this product

Request a quote with no obligation — no account needed.

Teltonika TSW304 – Ethernet switch

Teltonika TSW304 – Ethernet switchSKU: TN-TSW304

Please include the model or order code, quantity and required regional version. We will confirm price, availability and delivery with your quote.

Teltonika TSW304 – Ethernet switch

ETH: 4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Input voltage range: 7 - 57 VDC; 9 - 40 VAC
Dimensions (W x H x D): 102 x 25 x 81.5 mm
Operating temperature: -40 °C to 75 °C

Technical specifications

Ethernet

ETH	4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Power

Connector	2-pin industrial DC power socket
Input voltage range	7 - 57 VDC; 9 - 40 VAC
PoE (passive)	Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 - 30 VDC
Power consumption	Idle: 0.26 W / Max: 1.44 W

Physical Interfaces

Ethernet	4 x RJ45 ports, 10/100/1000 Mbps
Status LEDs	8 x ETH status LEDs, 1 x Power LED
Power	1 x 2-pin industrial DC power socket
Other	1 x Grounding screw

Physical Specification

Casing material	Anodised aluminium housing and panels
Dimensions (W x H x D)	102 x 25 x 81.5 mm
Weight	210 g
Mounting options	Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)

Operating Environment

Operating temperature	-40 °C to 75 °C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP30

INDUSTRIAL PROTOCOLS

Profinet	Profinet Class A conformance (available with optional order code)

Performance Specifications

Bandwidth (Non-blocking)	8 Gbps
Packer buffer	128 KB
MAC address table size	2K entries
Jumbo frame support	9216 bytes

Accessories with manufacturer-listed compatibility

Check connector, regional version and any limitations on the accessory page.

Documentation and downloads

Technical information checked against the linked manufacturer page on 17 October 2026. Radio bands, approvals and package contents can depend on the full order code and region. Software features depend on firmware, configuration and any additional packages or licences. Price and availability are confirmed on enquiry.

Manufacturer	Teltonika Networks
Model	TSW304
Feature 1	4 x Gigabit Ethernet ports
Feature 2	Integrated DIN rail bracket
Feature 3	7-57 V
Physical Interfaces – Ethernet	4 x RJ45 ports, 10/100/1000 Mbps
Physical Interfaces – Status LEDs	8 x ETH status LEDs, 1 x Power LED
Physical Interfaces – Power	1 x 2-pin industrial DC power socket
Physical Interfaces – Other	1 x Grounding screw
Power – Connector	2-pin industrial DC power socket
Power – Input voltage range	7 – 57 VDC; 9 – 40 VAC
Power – PoE (passive)	Possibility to power up through ETH1 ports, not compatible with IEEE802.3af, 802.3at and 802.3bt standards, Mode B, 9 – 30 VDC
Power – Power consumption	Idle: 0.26 W / Max: 1.44 W
Physical Specification – Casing material	Anodised aluminium housing and panels
Physical Specification – Dimensions (W x H x D)	102 x 25 x 81.5 mm
Physical Specification – Weight	210 g
Physical Specification – Mounting options	Integrated DIN rail bracket; wall mount and flat surface (additional kit needed)
Operating Environment – Operating temperature	-40 °C to 75 °C
Operating Environment – Operating humidity	5% to 95% non-condensing
Operating Environment – Ingress Protection Rating	IP30
Ethernet – ETH	4 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
Ethernet – IEEE 802.3 series standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Profinet	Profinet Class A conformance (available with optional order code)
Bandwidth (Non-blocking)	8 Gbps
Packer buffer	128 KB
MAC address table size	2K entries
Jumbo frame support	9216 bytes
