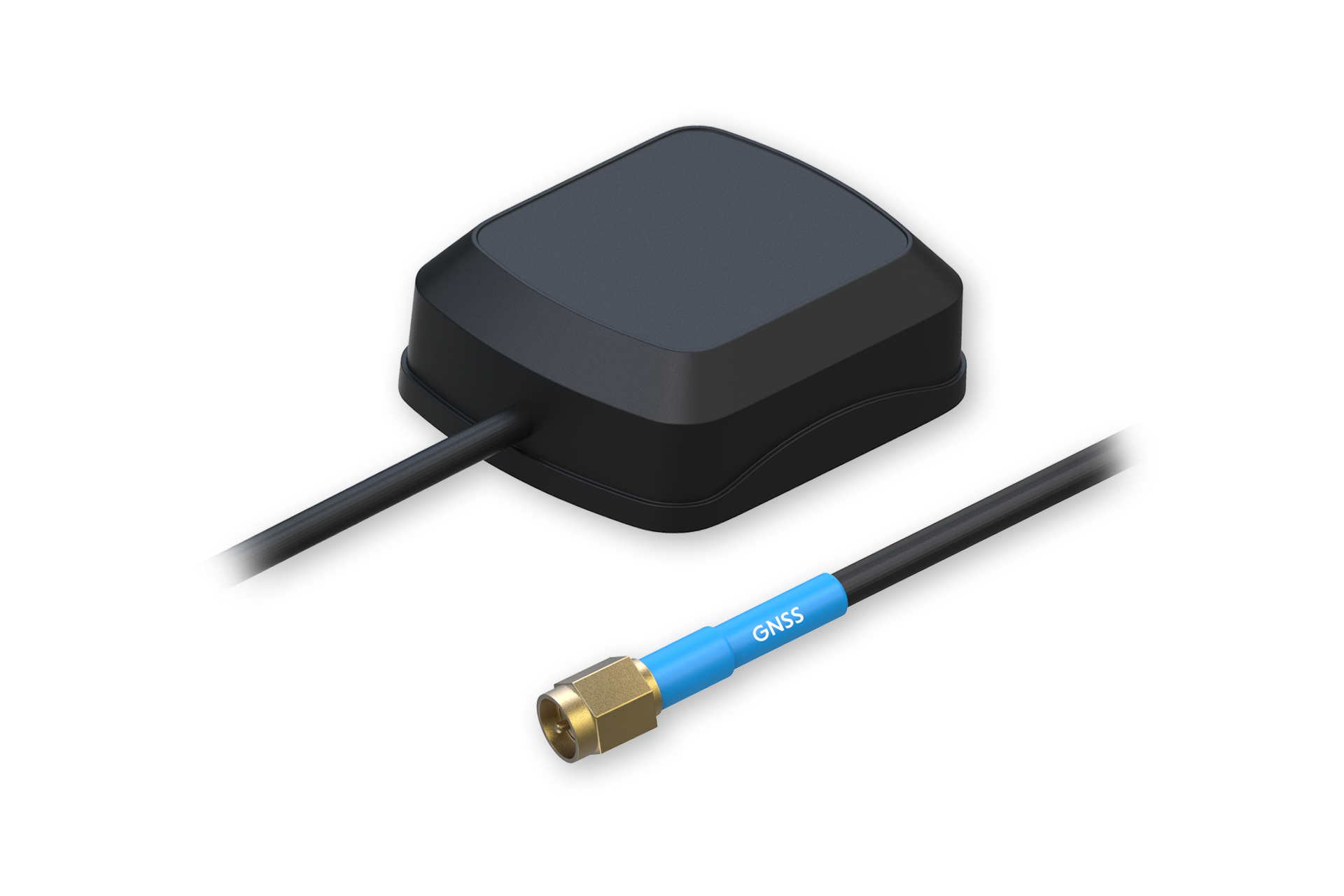

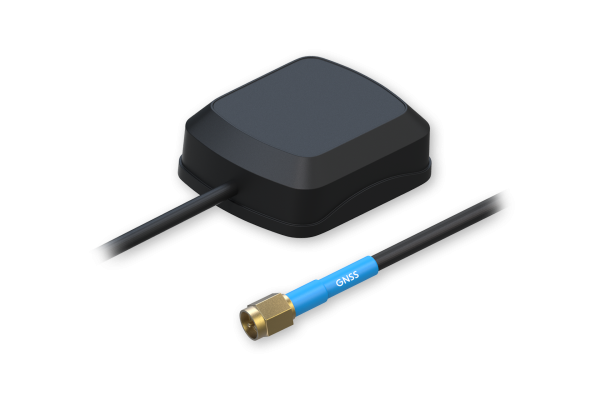

Teltonika PR1KSG30 – GNSS Adhesive SMA Antenna
Manufacturer order code: PR1KSG30
Technical specifications
| Frequency range | 1575 ~ 1602 MHz |
|---|---|
| Polarisation | RHCP |
| Gain | 2.0 dBi |
| VSWR | 2.0 |
| Impedance | 50 Ω |
| Axial ratio | 3 dB |
| LNA Gain | 26 ± 2 dB |
| LNA noise figure | 1.5 dB |
| Supply voltage | 2.2 – 5.0 VDC |
| Current consumption | 5 – 15 mA |
| Power consumption | 8.5 ± 3 mA @ 3.0 V, 9.5 ± 3 mA @ 5.0 V |
| LNA VSWR | 2.0 |
| Cable | RG174, 3000 mm |
| Connector type | SMA Male |
| Mounting method | Adhesive |
| Operating temperature | –40 ~ +85 |
| Operating relative humidity | 95 % |
| RoHS compliant | ✓ |
Compatible models listed by the manufacturer
ATRM50, NTP001, RUT204, RUT906, RUT956, RUT976, RUT986, RUTC16, RUTC40, RUTC50, RUTC54, RUTM09, RUTM11, RUTM16, RUTM50, RUTM50 (Japan), RUTM52, RUTM54, RUTM55, RUTM56, RUTM59, RUTX09, RUTX11, RUTX12, RUTX14, RUTX50, TRB246, TRB247, TRB256
Documentation and downloads
Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.
