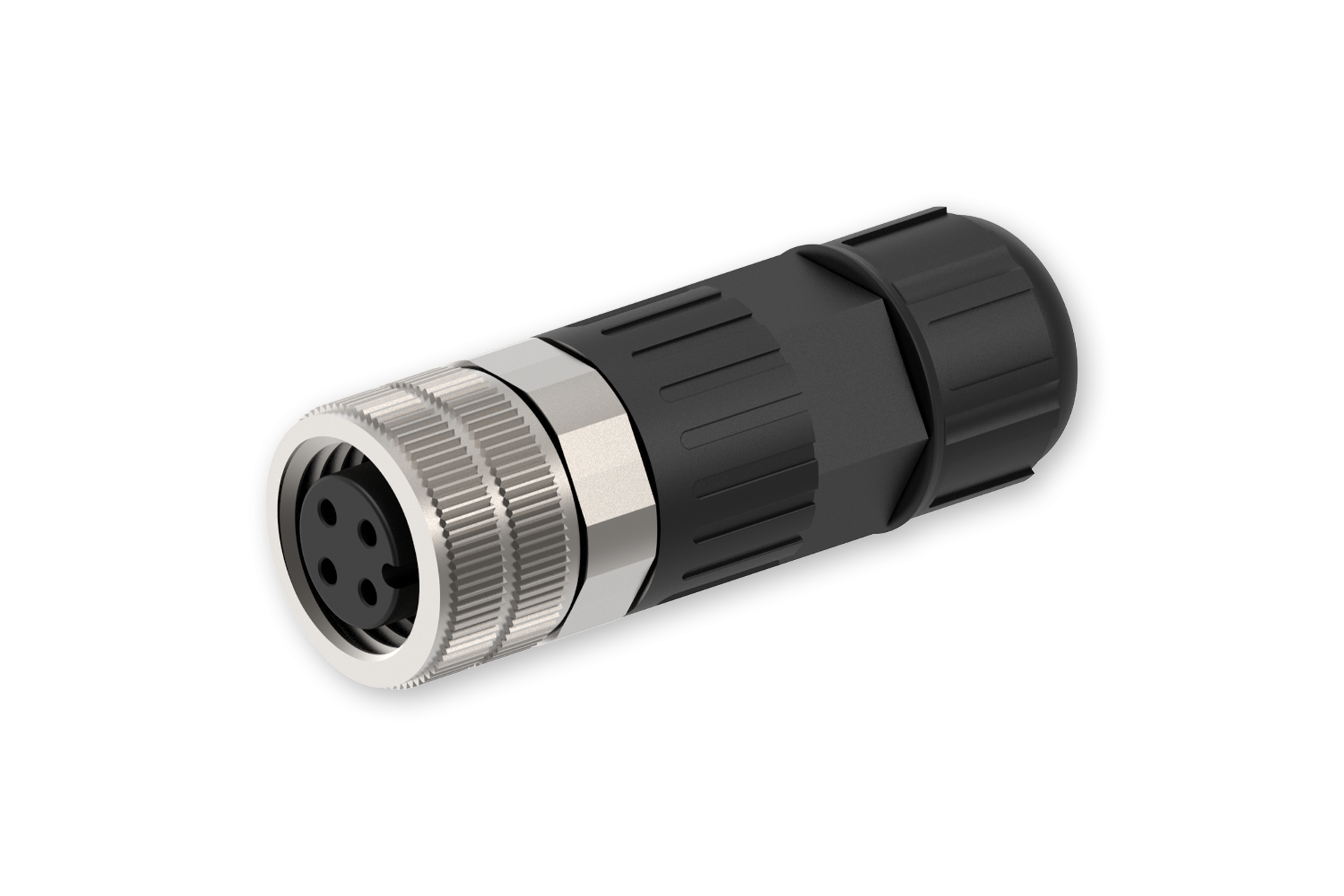

Teltonika PR40119K – M12 A Typ 4-polig Buchse Steckverbinder

RJ connectors and plugs

Teltonika PR40119K – M12 A Type 4-Pin Female Connector

Price on request

Teltonika PR40119K – M12 A Type 4-Pin Female Connector. Key specifications for your installation:

Voltage rating: 250 V
Current rating: 4 A
Contact resistance: ≤ 10mΩ

View all specifications and documents ↓

SKU: TN-PR40119K Category: RJ connectors and plugs Brand:

Delivery time: 5–7 business days

Request a quote →

Delivery time and availability will be confirmed in your quote.

For longer lengths or custom cable lengths, please contact us.
Contact us / Request a quote ↗Product details are filled in automatically. Tell us the quantity or length you need.

Request a quote for this product

Request a quote with no obligation — no account needed.

Teltonika PR40119K – M12 A Type 4-Pin Female Connector

Teltonika PR40119K – M12 A Type 4-Pin Female ConnectorSKU: TN-PR40119K

Please include the model or order code, quantity and required regional version. We will confirm price, availability and delivery with your quote.

Teltonika PR40119K – M12 A Type 4-Pin Female Connector

Manufacturer order code: PR40119K

Technical specifications

MECHANICAL/ENVIRONMENTAL

Voltage rating	250 V
Current rating	4 A
Contact resistance	≤ 10mΩ
Wire range AWG	24 (0.5 mm²) / contact
Temperature range	-25 °C to +85 °C
Mounting method	Screwable (M12)
Life - number of mating cycles	> 500
IP rating	IP68 (when plugged in)
Housing material	Nickel plated brass / plastic
Seals for calbe outer diameter	Ø 4.0 mm - 8.0 mm
Weight	26 g
RoHS	✓
REACH	✓
UL 94 V-0	✓

Compatible models listed by the manufacturer

Documentation and downloads

Manufacturer page, datasheet and downloads

Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.

Manufacturer	Teltonika Networks
Manufacturer order code	PR40119K
MECHANICAL/ENVIRONMENTAL – Voltage rating	250 V
MECHANICAL/ENVIRONMENTAL – Current rating	4 A
MECHANICAL/ENVIRONMENTAL – Contact resistance	≤ 10mΩ
MECHANICAL/ENVIRONMENTAL – Wire range AWG	24 (0.5 mm²) / contact
MECHANICAL/ENVIRONMENTAL – Temperature range	-25 °C to +85 °C
MECHANICAL/ENVIRONMENTAL – Mounting method	Screwable (M12)
MECHANICAL/ENVIRONMENTAL – Life - number of mating cycles	> 500
MECHANICAL/ENVIRONMENTAL – IP rating	IP68 (when plugged in)
MECHANICAL/ENVIRONMENTAL – Housing material	Nickel plated brass / plastic
MECHANICAL/ENVIRONMENTAL – Seals for calbe outer diameter	Ø 4.0 mm – 8.0 mm
MECHANICAL/ENVIRONMENTAL – Weight	26 g
MECHANICAL/ENVIRONMENTAL – RoHS	✓
MECHANICAL/ENVIRONMENTAL – REACH	✓
MECHANICAL/ENVIRONMENTAL – UL 94 V-0	✓
