Teltonika PR40118K – M12 X Typ 8-polig gerader Stecker Steckverbinder

RJ connectors and plugs

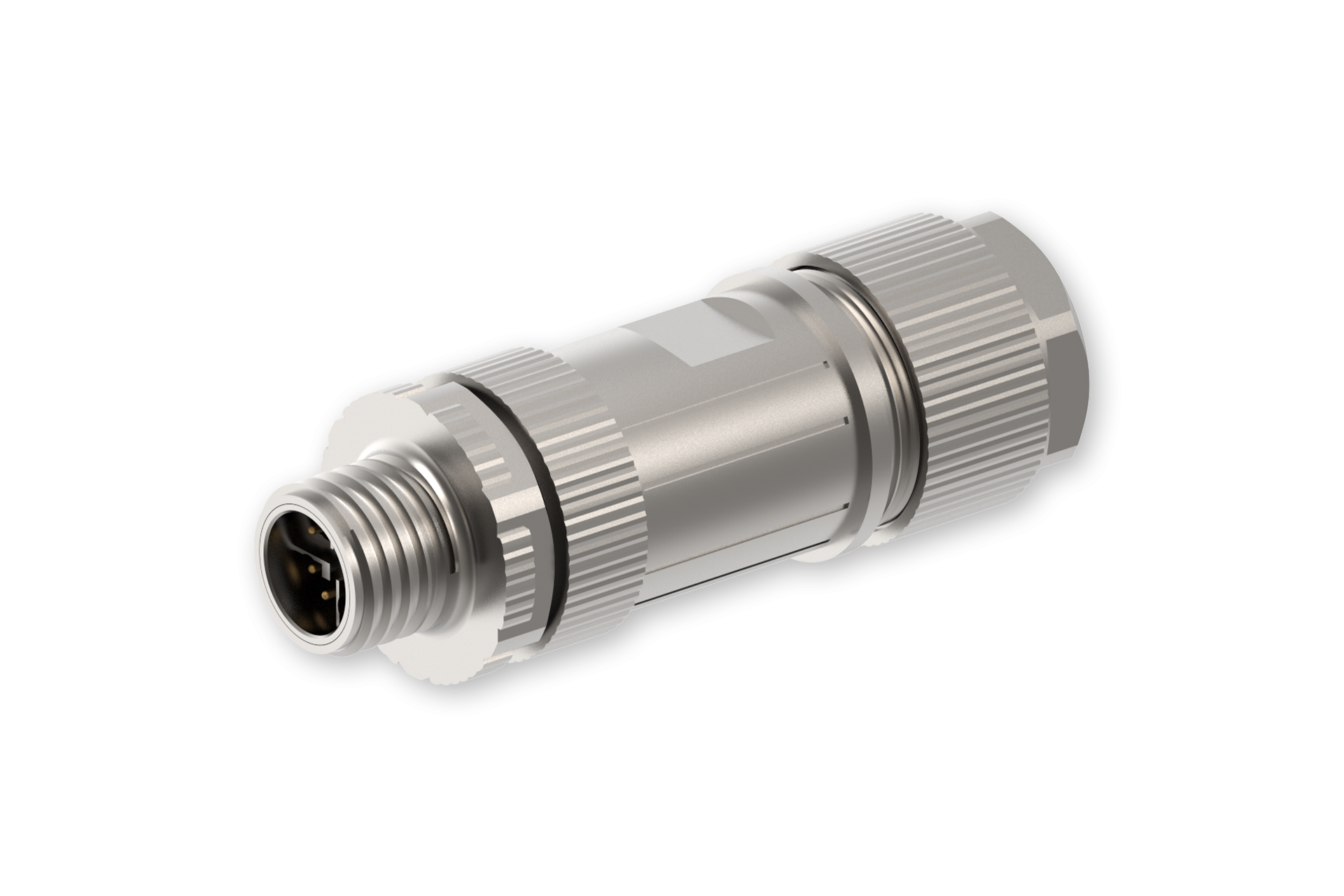

Teltonika PR40118K – M12 X Type 8-Pin Straight Male Connector

Price on request

Teltonika PR40118K – M12 X Type 8-Pin Straight Male Connector. Key specifications for your installation:

Voltage rating: 48V AC / 60V DC
Current carrying capacity: 0.5 A
Conductor cross section, solid wire: AWG 26/1 - AWG 22/1

View all specifications and documents ↓

SKU: TN-PR40118K Category: RJ connectors and plugs Brand:

Delivery time: 5–7 business days

Request a quote →

Delivery time and availability will be confirmed in your quote.

For longer lengths or custom cable lengths, please contact us.
Contact us / Request a quote ↗Product details are filled in automatically. Tell us the quantity or length you need.

Request a quote for this product

Request a quote with no obligation — no account needed.

Teltonika PR40118K – M12 X Type 8-Pin Straight Male Connector

Teltonika PR40118K – M12 X Type 8-Pin Straight Male ConnectorSKU: TN-PR40118K

Please include the model or order code, quantity and required regional version. We will confirm price, availability and delivery with your quote.

Teltonika PR40118K – M12 X Type 8-Pin Straight Male Connector

Manufacturer order code: PR40118K

Technical specifications

MECHANICAL/ENVIRONMENTAL

Voltage rating	48V AC / 60V DC
Current carrying capacity	0.5 A
Conductor cross section, solid wire	AWG 26/1 - AWG 22/1
Conductor cross section, stranded wire	AWG 26/7 - AWG 22/7
Temperature range	-40 °C to +85 °C
Mounting method	Screwable (M12)
Insertion and withdrawal force	≤ 30 N
Life - number of mating cycles	≥ 100
IP rating	IP67 (when plugged in)
Housing material	GD-Zn (zinc die-cast)
Contact material	CuZnPb (brass)
Contact finish material	Ni + Au (nickel-gold)
Shield material	CuSn (tin bronze)
Shield finish material	Sn (tin)
Stuffer cap material	PA
Finish material	Ni (nickel)
Weight	47 g
RoHS	✓
REACH	✓

Compatible models listed by the manufacturer

Documentation and downloads

Manufacturer page, datasheet and downloads

Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.

Manufacturer	Teltonika Networks
Manufacturer order code	PR40118K
MECHANICAL/ENVIRONMENTAL – Voltage rating	48V AC / 60V DC
MECHANICAL/ENVIRONMENTAL – Current carrying capacity	0.5 A
MECHANICAL/ENVIRONMENTAL – Conductor cross section, solid wire	AWG 26/1 – AWG 22/1
MECHANICAL/ENVIRONMENTAL – Conductor cross section, stranded wire	AWG 26/7 – AWG 22/7
MECHANICAL/ENVIRONMENTAL – Temperature range	-40 °C to +85 °C
MECHANICAL/ENVIRONMENTAL – Mounting method	Screwable (M12)
MECHANICAL/ENVIRONMENTAL – Insertion and withdrawal force	≤ 30 N
MECHANICAL/ENVIRONMENTAL – Life - number of mating cycles	≥ 100
MECHANICAL/ENVIRONMENTAL – IP rating	IP67 (when plugged in)
MECHANICAL/ENVIRONMENTAL – Housing material	GD-Zn (zinc die-cast)
MECHANICAL/ENVIRONMENTAL – Contact material	CuZnPb (brass)
MECHANICAL/ENVIRONMENTAL – Contact finish material	Ni + Au (nickel-gold)
MECHANICAL/ENVIRONMENTAL – Shield material	CuSn (tin bronze)
MECHANICAL/ENVIRONMENTAL – Shield finish material	Sn (tin)
MECHANICAL/ENVIRONMENTAL – Stuffer cap material	PA
MECHANICAL/ENVIRONMENTAL – Finish material	Ni (nickel)
MECHANICAL/ENVIRONMENTAL – Weight	47 g
MECHANICAL/ENVIRONMENTAL – RoHS	✓
MECHANICAL/ENVIRONMENTAL – REACH	✓
