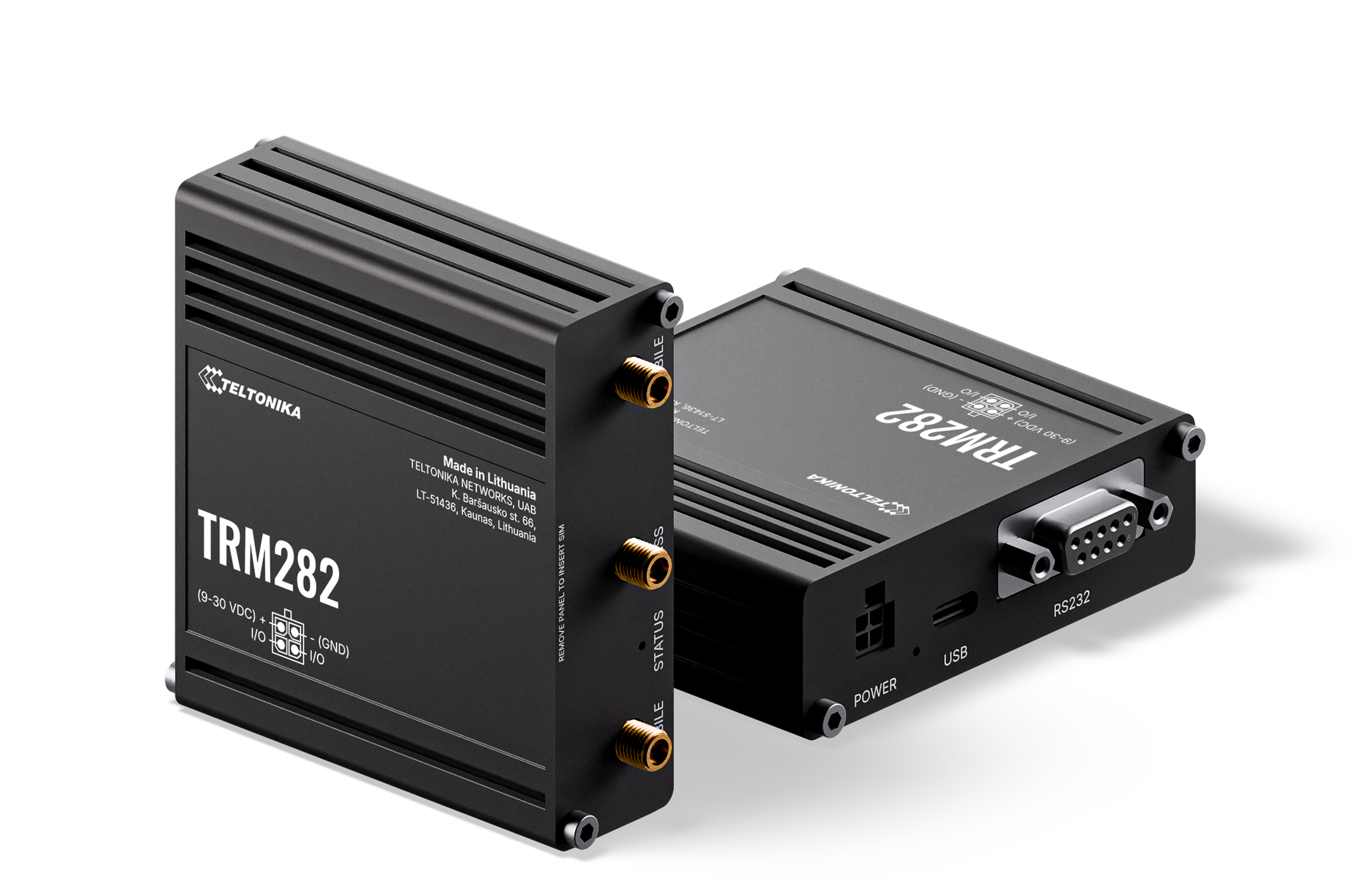

Teltonika TRM282 – cellular modem

Price on request

Teltonika TRM282 – cellular modem. Key specifications for your installation:

Mobile module: 4G (LTE) – LTE Cat 4 150Mbps DL, 50Mbps UL
Connector: 1 x 4-pin industrial DC power socket 1 x USB Type-C (The USB host must provide 5V @ 0.9A to power the device via the USB Type-C port)
Input voltage range: 4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >51 VDC 10us max USB Type-C: 5 VDC

View all specifications and documents ↓

SKU: TN-TRM282 Category: Cellular modems Brand:

Delivery time: 5–7 business days

Request a quote →

Delivery time and availability will be confirmed in your quote.

For longer lengths or custom cable lengths, please contact us.
Contact us / Request a quote ↗Product details are filled in automatically. Tell us the quantity or length you need.

Request a quote for this product

Request a quote with no obligation — no account needed.

Teltonika TRM282 – cellular modem

Teltonika TRM282 – cellular modemSKU: TN-TRM282

Please include the model or order code, quantity and required regional version. We will confirm price, availability and delivery with your quote.

Teltonika TRM282 – cellular modem

Mobile module: 4G (LTE) – LTE Cat 4 150Mbps DL, 50Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
Input voltage range: 4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >51 VDC 10us max USB Type-C: 5 VDC
Dimensions (W x H x D): 83 x 25 x 85.8 mm
Operating temperature: -40 °C to 65 °C

Technical specifications

Mobile

Mobile module	4G (LTE) – LTE Cat 4 150Mbps DL, 50Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
3GPP Release	Release 11

Power

Connector	1 x 4-pin industrial DC power socket 1 x USB Type-C (The USB host must provide 5V @ 0.9A to power the device via the USB Type-C port)
Input voltage range	4-pin: 9 - 30 VDC, overvoltage protection, reverse polarity protection, surge protection >51 VDC 10us max USB Type-C: 5 VDC
Power consumption	Idle: < 0.4 W, Max: < 4 W

Physical Interfaces

Status LEDs	1 x Power LED, 1 x Status LED
SIM	1 x SIM slot (Mini SIM - 2FF, internal SIM holder), 1.8 V/3 V
Power	1 x 4-pin power connector 1 x USB Type-C (The USB host must provide 5V @ 0.9A to power the device via the USB Type-C port)
Antennas	2 x SMA for Mobile, 1 x SMA for GNSS
RS232	1 x DB9 connector (for data communication and modem control using AT commands)
USB	1 x Virtual network interface via USB Type-C (for power and modem control, data communication)

Physical Specification

Casing material	Anodised aluminium housing and panels
Dimensions (W x H x D)	83 x 25 x 85.8 mm
Weight	171 g
Mounting options	DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Operating temperature	-40 °C to 65 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30

Location Tracking

GNSS	GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates	GNSS coordinates via WebUI, SMS, TAVL, RS232
NMEA	NMEA 0183
Server software	Supported server software TAVL
Tracking sensitivity	-160 dBm
Position Accuracy	< 2.0m CEP

TRM SOFTWARE

Management Software	Windows Connection Manager, Modem Manager (Linux)
USB Serial Driver	Windows 7/8/8.1/10/11, Linux >5.8, Android 11, 12, 13, 14, 15
GNSS Driver	Android 11, 13, 14
RIL Driver	Android 11, 12, 13, 14, 15
ECM Driver	Linux >5.8
QMI_WWAN Driver	Linux >5.8

Accessories with manufacturer-listed compatibility

Check connector, regional version and any limitations on the accessory page.

Documentation and downloads

Manufacturer page, datasheet and downloads

Technical information checked against the linked manufacturer page on 17 October 2026. Radio bands, approvals and package contents can depend on the full order code and region. Software features depend on firmware, configuration and any additional packages or licences. Price and availability are confirmed on enquiry.

Manufacturer	Teltonika Networks
Model	TRM282
Feature 1	Global 4G
Feature 2	USB & RS232
Feature 3	Dual antenna
Physical Interfaces – Status LEDs	1 x Power LED, 1 x Status LED
Physical Interfaces – SIM	1 x SIM slot (Mini SIM – 2FF, internal SIM holder), 1.8 V/3 V
Physical Interfaces – Power	1 x 4-pin power connector 1 x USB Type-C (The USB host must provide 5V @ 0.9A to power the device via the USB Type-C port)
Physical Interfaces – Antennas	2 x SMA for Mobile, 1 x SMA for GNSS
Physical Interfaces – RS232	1 x DB9 connector (for data communication and modem control using AT commands)
Physical Interfaces – USB	1 x Virtual network interface via USB Type-C (for power and modem control, data communication)
Power – Connector	1 x 4-pin industrial DC power socket 1 x USB Type-C (The USB host must provide 5V @ 0.9A to power the device via the USB Type-C port)
Power – Input voltage range	4-pin: 9 – 30 VDC, overvoltage protection, reverse polarity protection, surge protection >51 VDC 10us max USB Type-C: 5 VDC
Power – Power consumption	Idle: < 0.4 W, Max: < 4 W
Physical Specification – Casing material	Anodised aluminium housing and panels
Physical Specification – Dimensions (W x H x D)	83 x 25 x 85.8 mm
Physical Specification – Weight	171 g
Physical Specification – Mounting options	DIN rail, wall mount, flat surface (all require additional kit)
Operating Environment – Operating temperature	-40 °C to 65 °C
Operating Environment – Operating humidity	10% to 90% non-condensing
Operating Environment – Ingress Protection Rating	IP30
Mobile – Mobile module	4G (LTE) – LTE Cat 4 150Mbps DL, 50Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
3GPP Release	Release 11
GNSS	GPS, GLONASS, BeiDou, Galileo and QZSS
Coordinates	GNSS coordinates via WebUI, SMS, TAVL, RS232
NMEA	NMEA 0183
Server software	Supported server software TAVL
Tracking sensitivity	-160 dBm
