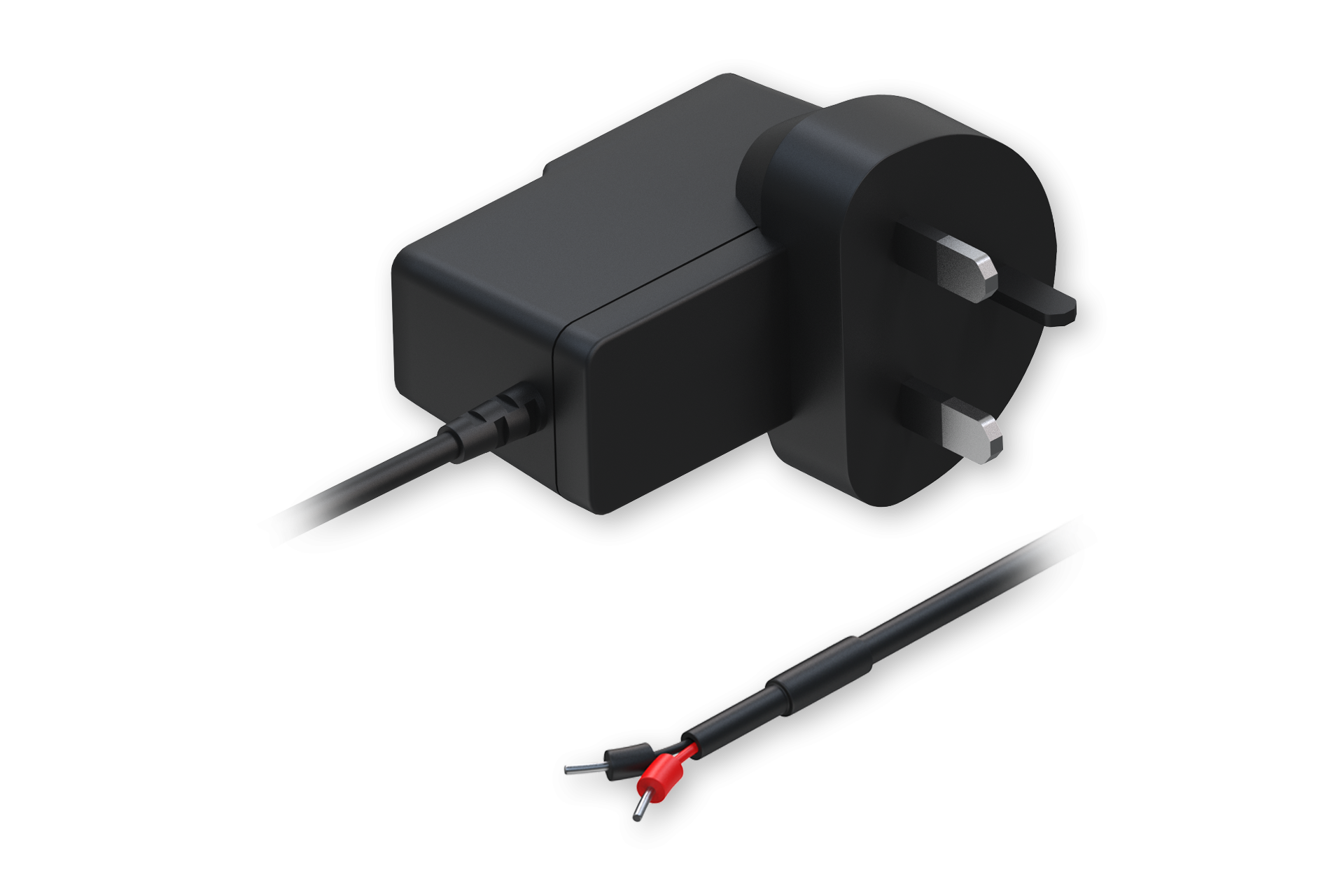

Teltonika PR3PRUK6 – UK 2-Pin Power Supply, 9 W
Manufacturer order code: PR3PRUK6
Technical specifications
Technical Data
| Input voltage | 100 – 240 VAC |
|---|---|
| Input frequency | 50 / 60 Hz |
| Input current | 0.45 A |
| Input connector | UK (Type G) |
| Output voltage | 9 VDC |
| Output current | 1.0 A |
| Output connector | 2-pin, with cord end terminals |
| Input voltage range | 90 – 264 VAC |
|---|---|
| Input frequency range | 47 – 63 Hz |
| Maximum input inrush current | 40 A |
| Output voltage maximum deviation | 8.55 – 9.45 VDC |
| Short circuit protection | ✓ |
| HIPOT (dielectric withstand test) | Primary to Secondary: 3000 VAC |
| MTBF | 50000 h |
| Certification | EN 62368-1:2014+A11:2017 EN 55032:2015, EN 55035:2017 EN 61000-3-2:2014, EN 61000-3-3:2013 IEC 62321-7-1:2015, IEC 62321-6:2015, IEC 62321-5:2013, IEC 62321-4:2013, IEC 62321:2008 Annex C |
Compatible models listed by the manufacturer
DAP140, DAP142, DAP145, RUT140, RUT142, RUT145, RUT204, RUT206, TRB236, TRB246, TRB247, TRB256, TSF010, TSW010, TSW030, TSW114, TSW210, TSW212, TSW304
Documentation and downloads
Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.
