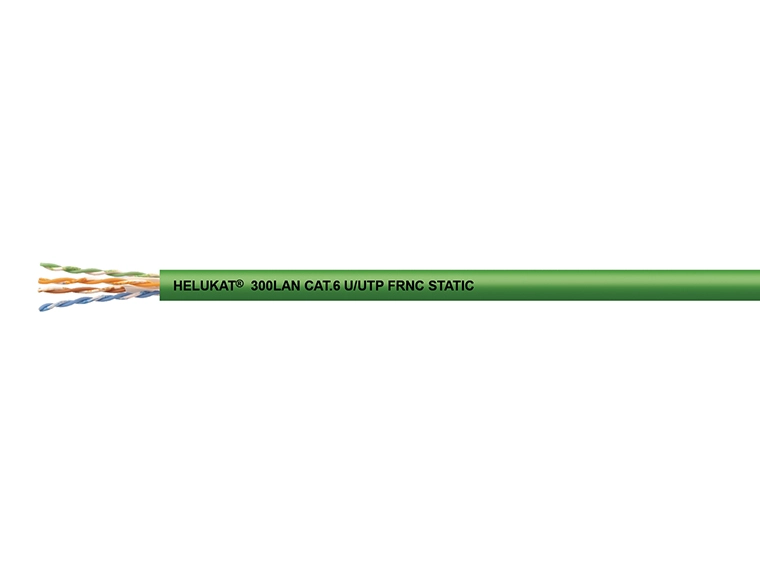

Ungeschirmtes CAT.6-LAN-Kabel für die strukturierte Gebäudeverkabelung. Das HELUKAT® 300LAN eignet sich für feste Installation im Tertiär- und Sekundärbereich. Der halogenfreie, flammwidrige und raucharme FRNC-Außenmantel ist grün (RAL 6018); der Hersteller gibt eine Eignung bis 10 Gigabit an.
Technische Daten
| Hersteller | HELUKABEL |
|---|---|
| Artikelnummer | 804766 |
| EAN / GTIN | 4060892313783 |
| Kategorie / Normen | CAT.6; ISO/IEC 11801, DIN EN 50173, IEC 61156-5, EN 50288-6-1 |
| Aufbau | 4×2×AWG 24/1, U/UTP, ungeschirmt |
| Leiter | Blankes Kupfer, AWG-Maße; Nennquerschnitt ca. 0,24 mm² |
| Leiterdurchmesser / Aderdurchmesser | Ca. 0,55 mm / ca. 0,98 mm |
| Aderisolation | PE |
| Außenmantel | Halogenfreies, flammwidriges FRNC-Compound; grün (RAL 6018) |
| Außendurchmesser | Ca. 6,8 mm |
| Temperaturbereich | Fest verlegt: −20 bis +60 °C; bei Verlegung: 0 bis +50 °C |
| Betriebsspitzenspannung | 125 V; nicht für Starkstrominstallationen |
| Leiter- / Schleifenwiderstand bei 20 °C | Max. 95 / 190 Ω/km |
| Betriebskapazität | Ca. 50 pF/m bei 800 Hz |
| Relative Ausbreitungsgeschwindigkeit | Ca. 67 % |
| Wellenwiderstand | 100 Ω ±15 Ω (1–100 MHz); 100 Ω ±20 Ω (101–300 MHz) |
| Mindestbiegeradius | Fest verlegt: 4× Außendurchmesser; bei Verlegung: 8× Außendurchmesser |
| Brandverhalten | Dca; flammwidrig und raucharm laut Herstellerangaben |
| Verpackungseinheiten | 500 m oder 1.000 m; individueller Zuschnitt laut Hersteller möglich |
Für feste strukturierte Netzwerk- und Gebäudeverkabelung. Herstellerdatenblatt und Spezifikationen siehe Downloads.
Hersteller-Datenblatt (PDF, Deutsch)
Hinweis: Preis, Bestand und Lieferzeit im GermanSTS-Shop müssen noch bestätigt werden.
