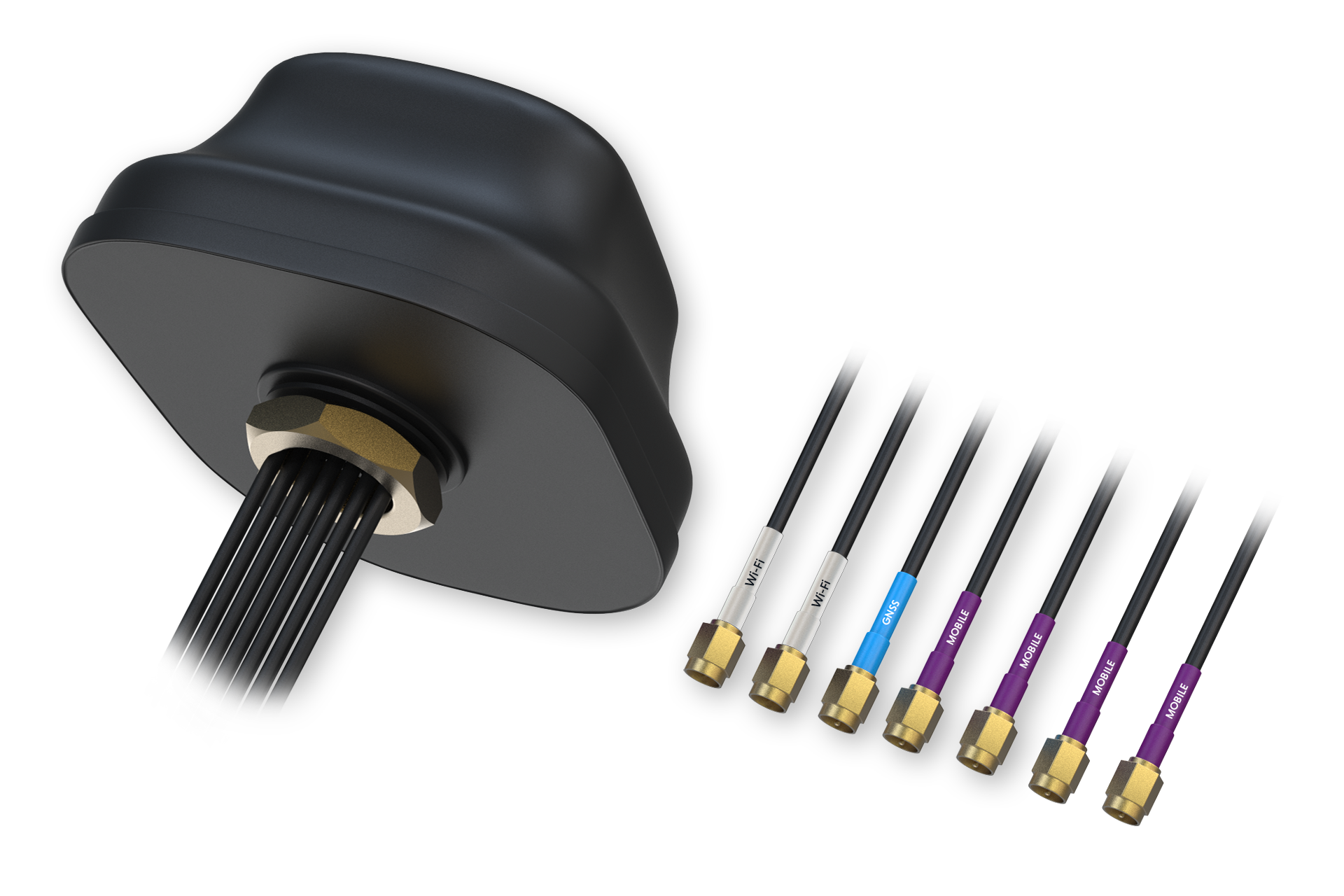

Teltonika PR1KC640 – 5G Kombi MIMO Mobilfunk/GNSS/WLAN Dach SMA Antenne

Combined networking antennas

Teltonika PR1KC640 – 5G Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna

Price on request

Teltonika PR1KC640 – 5G Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna. Key specifications for your installation:

Frequency range: 617 - 960 / 1710 - 2690 / 2900 - 4200 MHz
Gain: 4.0 dBi
Polarisation: Linear

View all specifications and documents ↓

SKU: TN-PR1KC640 Category: Combined networking antennas Brand:

Delivery time: 5–7 business days

Request a quote →

Delivery time and availability will be confirmed in your quote.

For longer lengths or custom cable lengths, please contact us.
Contact us / Request a quote ↗Product details are filled in automatically. Tell us the quantity or length you need.

Request a quote for this product

Request a quote with no obligation — no account needed.

Teltonika PR1KC640 – 5G Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna

Teltonika PR1KC640 – 5G Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA AntennaSKU: TN-PR1KC640

Please include the model or order code, quantity and required regional version. We will confirm price, availability and delivery with your quote.

Teltonika PR1KC640 – 5G Combo MIMO Mobile/GNSS/Wi-Fi Roof SMA Antenna

Manufacturer order code: PR1KC640

Technical specifications

MECHANICAL/ENVIRONMENTAL

Mounting method	Screw
Radome ingress projection rating	IP67 (exclude cable outlet)
Radome material	UV-Resistant ABS/PC
Weight	960 ± 30 g
Housing dimensions	189 x 182 x 85 mm
Cable	7 x LMR100, 3000 mm
Recomended mounting dimensions	Hole ø28 mm, panel thickness MAX 8 mm
Operating temperature	-40 °C - +85 °C
RoHS compliant	✓

5G MOBILE MIMO ANTENNA

Frequency range	617 - 960 / 1710 - 2690 / 2900 - 4200 MHz
Polarisation	Linear
Gain	4.0 dBi
VSWR	≤3.0
Impedance	50 Ω
Connector type and count	4x SMA Male

GNSS ANTENNA

Frequency range	1164 - 1300 / 1559 - 1610 MHz
Polarisation	RHCP
Supply voltage	3 - 12 VDC
LNA Gain	40 ± 2 dB
VSWR	≤2.0
Impedance	50 Ω
Current consumption	≤60 mA
Connector type and count	SMA Male

WIFI MIMO ANTENNA

Frequency range	2400 - 2483.5 / 4900 - 5925 MHz
Polarisation	Linear
Gain	4.0 dBi
VSWR	≤2.5
Impedance	50 Ω
Connector type and count	2x RP SMA Male

Compatible models listed by the manufacturer

RUTC54, RUTX50, TRB501

Documentation and downloads

Manufacturer page, datasheet and downloads

Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.

Manufacturer	Teltonika Networks
Manufacturer order code	PR1KC640
MECHANICAL/ENVIRONMENTAL – Mounting method	Screw
MECHANICAL/ENVIRONMENTAL – Radome ingress projection rating	IP67 (exclude cable outlet)
MECHANICAL/ENVIRONMENTAL – Radome material	UV-Resistant ABS/PC
MECHANICAL/ENVIRONMENTAL – Weight	960 ± 30 g
MECHANICAL/ENVIRONMENTAL – Housing dimensions	189 x 182 x 85 mm
MECHANICAL/ENVIRONMENTAL – Cable	7 x LMR100, 3000 mm
MECHANICAL/ENVIRONMENTAL – Recomended mounting dimensions	Hole ø28 mm, panel thickness MAX 8 mm
MECHANICAL/ENVIRONMENTAL – Operating temperature	-40 °C – +85 °C
MECHANICAL/ENVIRONMENTAL – RoHS compliant	✓
Frequency range	617 – 960 / 1710 – 2690 / 2900 – 4200 MHz
Polarisation	Linear
Gain	4.0 dBi
VSWR	≤3.0
Impedance	50 Ω
Connector type and count	4x SMA Male
GNSS ANTENNA – Frequency range	1164 – 1300 / 1559 – 1610 MHz
GNSS ANTENNA – Polarisation	RHCP
Supply voltage	3 – 12 VDC
LNA Gain	40 ± 2 dB
GNSS ANTENNA – VSWR	≤2.0
Current consumption	≤60 mA
GNSS ANTENNA – Connector type and count	SMA Male
WIFI MIMO ANTENNA – Frequency range	2400 – 2483.5 / 4900 – 5925 MHz
WIFI MIMO ANTENNA – VSWR	≤2.5
WIFI MIMO ANTENNA – Connector type and count	2x RP SMA Male
