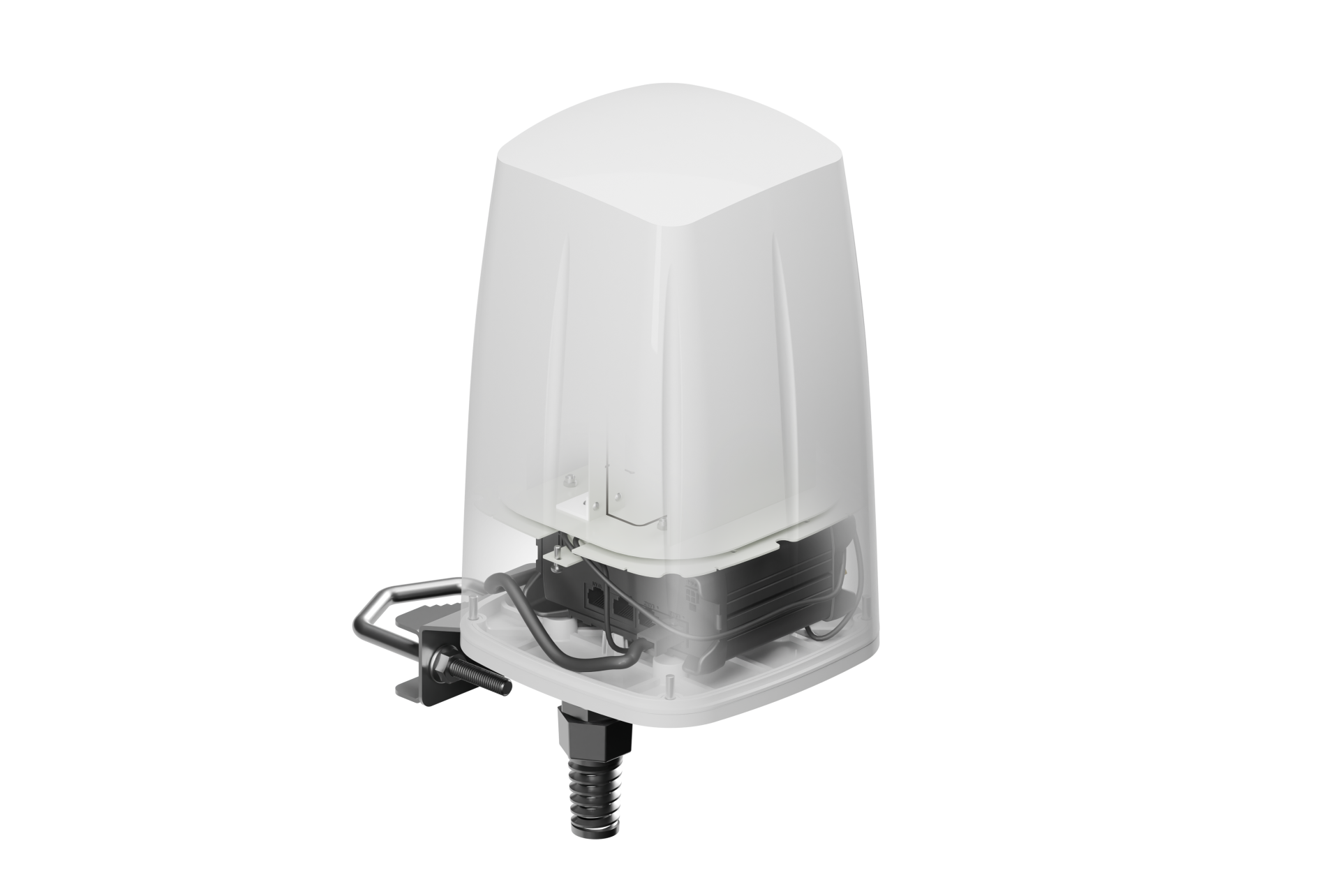

Teltonika PR1ICC60 – Outdoor LTE/Wi-Fi/GPS Antenna For Rut9-Series Routers
Manufacturer order code: PR1ICC60
Technical specifications
MECHANICAL/ENVIRONMENTAL
| Cable | 4x RG316, 1x RG174 |
|---|
| Operating temperature | -40 °C to 75 °C |
|---|
| Operating environment | This antenna is designed for stationary installations only and should not be used on moving objects or in high-vibration environments |
|---|
| Mounting method | Wall, ceiling, mast |
|---|
| IP rating | IP68 |
|---|
| Weight | 1500 g |
|---|
| RoHS compliant | ✓ |
|---|
LTE ANTENNA
| Frequency range | 617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz |
|---|
| Polarisation | Vertical |
|---|
| Radiation pattern type | Omnidirectional |
|---|
| Gain | Max 4.5 dBi |
|---|
| VSWR | < 2.50 |
|---|
| Impedance | 50 Ω |
|---|
| Connector type and count | 2x SMA male |
|---|
GNSS ANTENNA
| Frequency range | 1560 ~ 1610 MHz |
|---|
| Polarisation | RHCP |
|---|
| Gain | 28 dBi |
|---|
| VSWR | < 2.00 |
|---|
| Impedance | 50 Ω |
|---|
| Connector type and count | 1x SMA male |
|---|
| Current consumption | 2.5 - 6.5 mA |
|---|
| Supply voltage | 2.5 - 6.5 VDC |
|---|
WI-FI ANTENNA
| Frequency range | 2400 ~ 2500, 4700 ~ 6000 MHz |
|---|
| Polarisation | Vertical |
|---|
| Radiation pattern type | Omnidirectional |
|---|
| Gain | Max 7.5 dBi |
|---|
| VSWR | < 2.00 |
|---|
| Impedance | 50 Ω |
|---|
| Connector type and count | 2x RP-SMA male |
|---|
Compatible models listed by the manufacturer
RUT901, RUT906, RUT951, RUT951 PoE+, RUT956
Documentation and downloads
Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.
