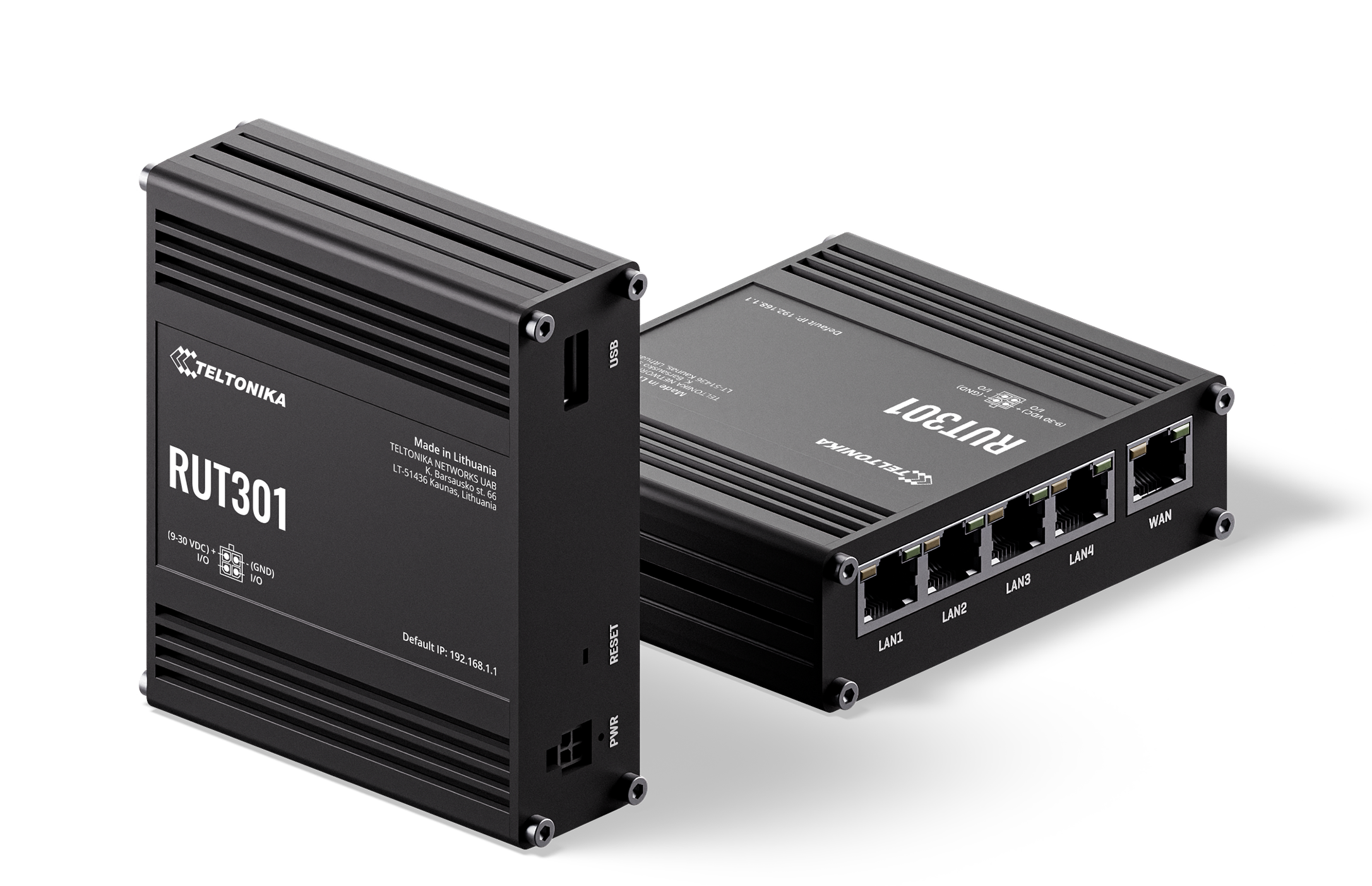

Teltonika RUT301 – router
- Input voltage range: 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection
- Dimensions (W x H x D): 100 x 30 x 85 mm
- Operating temperature: -40 °C to 75 °C
Technical specifications
Ethernet
| WAN | 1 x WAN port 10/100 Mbps, compliance IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX |
|---|---|
| LAN | 4 x LAN ports, 10/100 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
System Characteristics
| CPU | Mediatek, 580 MHz, MIPS 24KEc |
|---|---|
| RAM | 128 MB, DDR2 |
| FLASH storage | 16 MB serial NOR flash |
Input/Output
| Input | Up to 2 x Configurable digital Inputs (shared), 0 - 6 V detected as logic low, 8 - 30 V detected as logic high |
|---|---|
| Output | Up to 2 x Configurable digital Outputs (shared), Open collector output, max output 30 V, 300 mA |
| Events | Email, RMS |
| I/O juggler | Trigger events from configurable I/O conditions. |
Power
| Connector | 4-pin industrial DC power socket |
|---|---|
| Input voltage range | 9 - 30 VDC, reverse polarity protection, voltage surge/transient protection |
| PoE (passive) | Passive PoE (Optional - different hardware required; contact your sales manager) |
| Power consumption | Idle: < 0.8 W, Max: < 3.8 W |
Physical Interfaces
| Ethernet | 5 x RJ45 ports, 10/100 Mbps |
|---|---|
| I/O’s | 2 x Configurable digital I/O on 4-pin power connector |
| Status LEDs | 1 x WAN type LED, 4 x LAN status LEDs, 1 x Power LED |
| Power | 1 x 4-pin power connector |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
Physical Specification
| Casing material | Anodised aluminium housing and panels |
|---|---|
| Dimensions (W x H x D) | 100 x 30 x 85 mm |
| Weight | 233 g |
| Mounting options | DIN rail, wall mount, flat surface (all require additional kit) |
Operating Environment
| Operating temperature | -40 °C to 75 °C |
|---|---|
| Operating humidity | 10% to 90% non-condensing |
| Ingress Protection Rating | IP30 |
Network
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy based routing |
|---|---|
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, Wake On Lan (WOL), VXLAN |
| VoIP passthrough support | NAT helpers for H.323 and SIP ALG. |
| Connection monitoring | Ping/Wget and periodic reboot; LCP/ICMP link checks. |
| Firewall | Port forwarding, traffic/custom rules and adjustable TTL targets. |
| Firewall status page | Firewall rules, counters and statistics in the status view. |
| Port management | Enable/disable ports; configure speed and auto-negotiation. |
| Network topology | Topology view of connected network devices. |
| DHCP | Static/dynamic allocation, DHCP relay/server, status and static MAC leases with wildcards. |
| QoS / Smart Queue Management (SQM) | Priority queues by source/destination, service, protocol or port; WMM and 802.11e. |
| DDNS | More than 77 preconfigured providers; additional providers configurable manually. |
| DNS over HTTPS | DNS proxy using HTTPS for encrypted DNS queries. |
| Network backup | VRRP, Wired options, each of which can be used as an automatic Failover |
| Load balancing | Balance Internet traffic over multiple WAN connections |
| Hotspot | Captive portal with internal/external RADIUS, RADIUS MAC, SMS and SSO authentication; internal/external landing page, walled garden, scripts, URL parameters, users/groups and limits; 9 editable themes with theme import/export. |
| SSHFS | Mount remote file systems through SSH. |
| Traffic Management | Live traffic monitoring, radio-signal charts and usage history. |
Security
| Authentication | PSK, digital/X.509 certificates, TACACS+ and internal/external RADIUS; IP/login blocking, timed lockouts and random password generation. |
|---|---|
| Firewall | WebUI presets and CLI configuration; DMZ, NAT, NAT-T and NAT64. |
| Attack prevention | DoS protections for SYN flood, SSH and HTTP/HTTPS; scan detection for SYN-FIN, SYN-RST, X-mas, NULL and FIN. |
| VLAN | Port based and tagged VLAN separation. |
| WEB filter | Website blocklists and allowlists. |
| Access control | Access rules for SSH, WebUI, CLI and Telnet. |
| Certificate Manager | Create CA, server/client, Let’s Encrypt and SCEP certificates. |
| 802.1x | Port-based network access control server |
VPN
| OpenVPN | Simultaneous server and multiple clients; 27 encryption options. |
|---|---|
| OpenVPN Encryption | DES-CBC 64, RC2-CBC 128, DES-EDE-CBC 128, DES-EDE3-CBC 192, DESX-CBC 192, BF-CBC 128, RC2-40-CBC 40, CAST5-CBC 128, RC2-64-CBC 64, AES-128-CBC 128, AES-128-CFB 128, AES-128-CFB1 128, AES-128-CFB8 128, AES-128-OFB 128, AES-128-GCM 128, AES-192-CFB 192, AES-192-CFB1 192, AES-192-CFB8 192, AES-192-OFB 192, AES-192-CBC 192, AES-192-GCM 192, AES-256-GCM 256, AES-256-CFB 256, AES-256-CFB1 256, AES-256-CFB8 256, AES-256-OFB 256, AES-256-CBC 256 |
| IPsec | XFRM, IKEv1, IKEv2, with 14 encryption methods for IPsec (3DES, DES, AES128, AES192, AES256, AES128GCM8, AES192GCM8, AES256GCM8, AES128GCM12, AES192GCM12, AES256GCM12, AES128GCM16, AES192GCM16, AES256GCM16) |
| GRE | GRE and GRE over IPsec tunnels. |
| PPTP, L2TP | Concurrent client/server instances; L2TPv3 and L2TP over IPsec. |
| Stunnel | TLS proxy for existing client/server applications. |
| DMVPN | Scalable IPsec VPN: phase 2, phase 3 and dual-hub operation. |
| SSTP | SSTP client. |
| ZeroTier | ZeroTier client. |
| WireGuard | WireGuard client and server. |
| Tinc | Tinc client/server with encryption, authentication and compression. |
OPC UA
| Supported modes | Client, Server |
|---|---|
| Supported connection types | TCP |
MODBUS
| Supported modes | Server, Client |
|---|---|
| Supported connection types | TCP, USB |
| Custom registers | File backed custom Modbus TCP register blocks for read/write requests. |
| Supported data formats | 8-bit: INT, UINT; 16-bit: INT, UINT (MSB or LSB first); 32-bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
Data to Server
| Protocol | HTTP(S), MQTT, Azure MQTT |
|---|---|
| Data to server | Collect parameters across sources/protocols and transmit to one server; custom Lua scripts supported. |
BacNET
| Supported modes | Router |
|---|---|
| Supported connection types | IP, RTU (USB) |
| Configuration options | Multiple BACnet/IP interfaces, network-number assignment and preset BDT entries for BBMD. |
MQTT Gateway
| Modbus MQTT Gateway | Read Modbus-server data and send commands through an MQTT broker. |
|---|
DNP3
| Supported modes | Station, Outstation |
|---|---|
| Supported connection | TCP, USB |
DLMS/COSEM
| DLMS Support | Utility-meter data exchange using DLMS. |
|---|---|
| Supported modes | Client |
| Supported connection types | TCP, USB |
API
| Teltonika Networks Web API (beta) support | Configurable API endpoints to read/change device data; developer documentation available. |
|---|
Monitoring & Management
| WEB UI | HTTP/HTTPS administration: status, settings, firmware, CLI, diagnostics, remote/event/system/kernel logs and update notifications. |
|---|---|
| FOTA | Server based firmware updates with notifications. |
| SSH | SSH (v1, v2) |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP Trap, Brute force protection |
| JSON-RPC | Management API through HTTP/HTTPS. |
| RMS | Teltonika Remote Management System (RMS) |
IoT Platforms
| Cumulocity - Cloud of Things | Monitor model/revision/serial and WAN type/IP; remote reboot and firmware updates. |
|---|---|
| Azure IoT Hub | Cloud telemetry through Data to Server; RutOS API direct methods; Plug and Play with Device Provisioning Service. |
Firmware/Configuration
| WEB UI | Local/server firmware update, configuration profiles and backups. |
|---|---|
| FOTA | Firmware update. |
| RMS | Batch firmware/configuration updates for multiple devices. |
| Keep settings | Retain configuration during firmware updates. |
| Factory settings reset | Restore manufacturer defaults, including IP, PIN and user data settings. |
FIRMWARE CUSTOMISATION
| Operating system | RutOS (OpenWrt based Linux OS) |
|---|---|
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK with build environment. |
| GPL customization | Customize firmware branding, colours, logos and web applications. |
| Package Manager | Install additional software packages on the device. |
USB
| Data rate | USB 2.0 |
|---|---|
| Applications | Samba share, USB-to-serial |
| External devices | Possibility to connect external HDD, flash drive, additional modem, printer, USB-serial adapter |
| Storage formats | FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4 |
Accessories with manufacturer-listed compatibility
Check connector, regional version and any limitations on the accessory page.
- Teltonika PR3PDNP0 – DIN Rail Power Supply, 20 W, 12 V
- Teltonika PR2PP10B – 4-Pin To 4-Pin Power Cable
- Teltonika PR4MK04K – 4-Pin Plug With Contact Terminals
- Teltonika PR5MEC21 – 4-Pin Power Adapter With I/O Access
- Teltonika PR2PD01B – 4-Pin To Barrel Socket Adapter
- Teltonika PR2FK20M – Power Cable With 4-Way Screw Terminal
- Teltonika PR2AM20M – Automotive Power Supply
- Teltonika PR3PUAU3 – AU Power Supply, 9 W
- Teltonika PR3PUUS3 – US Power Supply, 9 W
- Teltonika PR3PUUK3 – UK Power Supply, 9 W
- Teltonika PR3PUEU3 – EU Power Supply, 9 W
- Teltonika PR3PUJP3 – JP Power Supply, 9 W
- Teltonika PR3PUPS3 – Universal Power Supply, 9 W
- Teltonika BAT120000000 – Bat120 – Uninterruptible Power Supply
- Teltonika PR5MEC23 – DIN Rail Kit Adapter
- Teltonika PR5MEC12 – Surface Mounting Kit
- Teltonika PR5MEC00 – DIN Rail Kit
- Teltonika PR5MEC11 – Compact DIN Rail Kit
- Teltonika PR5MEC32 – RJ45 Dust Covers
- Teltonika PR2US08M – USB 2.0 Type A To Micro-USB Type B Cable
- Teltonika PR2LA15B – Ethernet Cable 1.5M
Documentation and downloads
Technical information checked against the linked manufacturer page on 17 October 2026. Radio bands, approvals and package contents can depend on the full order code and region. Software features depend on firmware, configuration and any additional packages or licences. Price and availability are confirmed on enquiry.
