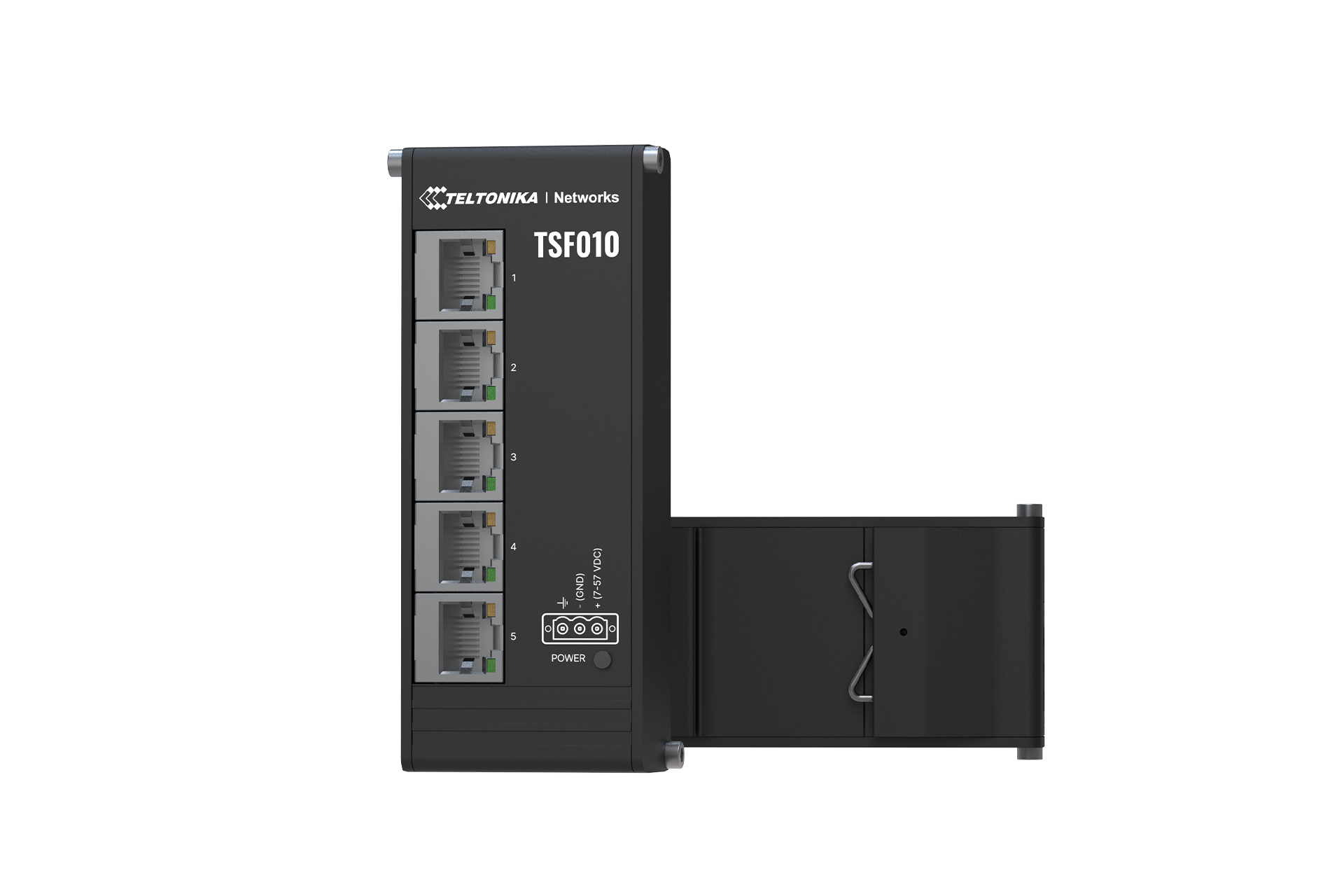

Teltonika TSF010 – Ethernet switch

Price on request

Teltonika TSF010 – Ethernet switch. Key specifications for your installation:

Ethernet: 5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
Connector: 3-pin industrial DC power socket
Dimensions (W x H x D): 113 x 28 x 50 mm

View all specifications and documents ↓

SKU: TN-TSF010 Category: Industrielle Switches Brand:

Delivery time: 5–7 business days

Request a quote →

Delivery time and availability will be confirmed in your quote.

For longer lengths or custom cable lengths, please contact us.
Contact us / Request a quote ↗Product details are filled in automatically. Tell us the quantity or length you need.

Request a quote for this product

Request a quote with no obligation — no account needed.

Teltonika TSF010 – Ethernet switch

Teltonika TSF010 – Ethernet switchSKU: TN-TSF010

Please include the model or order code, quantity and required regional version. We will confirm price, availability and delivery with your quote.

Teltonika TSF010 – Ethernet switch

Input voltage range: 9 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current
Dimensions (W x H x D): 113 x 28 x 50 mm
Operating temperature: -40 °C to 75 °C

Technical specifications

Ethernet

Ethernet	5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
IEEE 802.3 series standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

Power

Connector	3-pin industrial DC power socket
Input voltage range	9 – 57 VDC, overvoltage protection: 60 Vmax, reverse polarity protection: 80 Vmax, surge protection: min 64.4V/max 71.2V breakdown voltage, 93.6V maximum reverse voltage @4.3A maximum reverse surge current
Input voltage range*	12-40 VAC (50/60Hz)
Note	*Feature availability varies by order code
Power consumption	Idle: 1 W / Max: 1.5 W

Physical Interfaces

Ethernet	5 x RJ45 ports, 10/100 Mbps
Status LEDs	1 x Power LED, 10 x ETH status LEDs
Power	1 x 3-pin industrial DC power socket
Grounding	Grounding terminal on power connector

Physical Specification

Casing material	Anodised aluminium housing and panels
Dimensions (W x H x D)	113 x 28 x 50 mm
Weight	142 g
Mounting options	Integrated DIN rail bracket

Operating Environment

Operating temperature	-40 °C to 75 °C
Operating humidity	5% to 95% non-condensing
Ingress Protection Rating	IP30

INDUSTRIAL PROTOCOLS

Profinet	Profinet Class A conformance (available with optional order code)

Performance Specifications

Bandwidth (Non-blocking)	10 Gbps
Packer buffer	128 KB
MAC address table size	2K entries
Jumbo frame support	9216 bytes

Accessories with manufacturer-listed compatibility

Check connector, regional version and any limitations on the accessory page.

Documentation and downloads

Technical information checked against the linked manufacturer page on 17 October 2026. Radio bands, approvals and package contents can depend on the full order code and region. Software features depend on firmware, configuration and any additional packages or licences. Price and availability are confirmed on enquiry.

Manufacturer	Teltonika Networks
Model	TSF010
Feature 1	Flat design
Feature 2	5 x Ethernet ports
Feature 3	3-pin power input
Physical Interfaces – Ethernet	5 x RJ45 ports, 10/100 Mbps
Physical Interfaces – Status LEDs	1 x Power LED, 10 x ETH status LEDs
Physical Interfaces – Power	1 x 3-pin industrial DC power socket
Physical Interfaces – Grounding	Grounding terminal on power connector
Power – Connector	3-pin industrial DC power socket
Power – Input voltage range*	12-40 VAC (50/60Hz)
Power – Note	*Feature availability varies by order code
Power – Power consumption	Idle: 1 W / Max: 1.5 W
Physical Specification – Casing material	Anodised aluminium housing and panels
Physical Specification – Dimensions (W x H x D)	113 x 28 x 50 mm
Physical Specification – Weight	142 g
Physical Specification – Mounting options	Integrated DIN rail bracket
Operating Environment – Operating temperature	-40 °C to 75 °C
Operating Environment – Operating humidity	5% to 95% non-condensing
Operating Environment – Ingress Protection Rating	IP30
Ethernet – Ethernet	5 x ETH ports, 10/100 Mbps, supports auto MDI/MDIX crossover
Ethernet – IEEE 802.3 series standards	802.3i, 802.3u, 802.3ab, 802.3x, 802.3az
Profinet	Profinet Class A conformance (available with optional order code)
Bandwidth (Non-blocking)	10 Gbps
Packer buffer	128 KB
MAC address table size	2K entries
Jumbo frame support	9216 bytes
