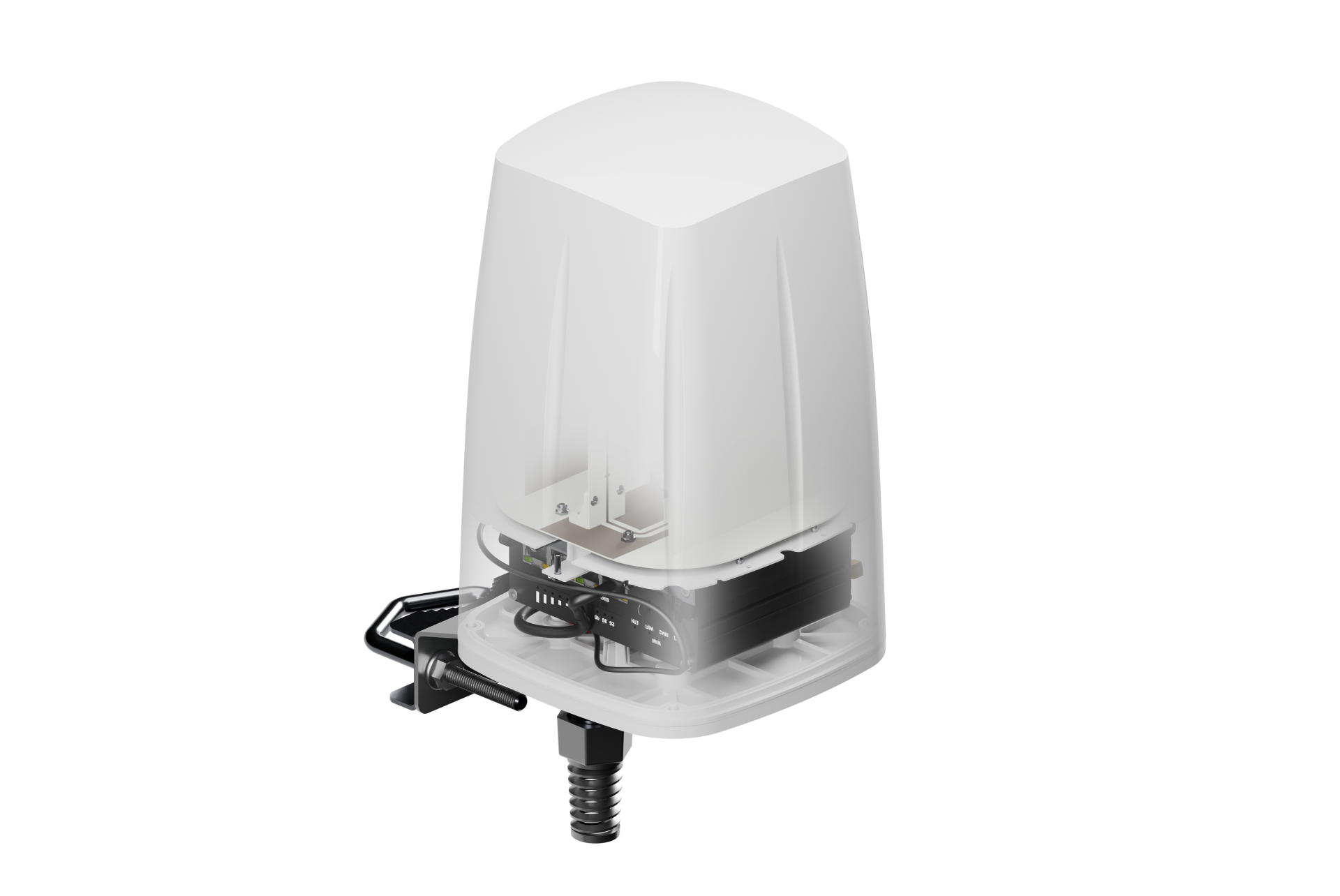

Teltonika PR1IC970 – Outdoor-LTE-/WLAN-/GPS-/Bluetooth-Antenne für RUTX11 und RUTM11 Router

Combined networking antennas

Teltonika PR1IC970 – Outdoor LTE/Wi-Fi/GPS/Bluetooth Antenna For Rutx11 And Rutm11 Routers

Price on request

Teltonika PR1IC970 – Outdoor LTE/Wi-Fi/GPS/Bluetooth Antenna For Rutx11 And Rutm11 Routers. Key specifications for your installation:

Frequency range: 617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz
Gain: Max 4.5 dBi
Polarisation: Vertical

View all specifications and documents ↓

SKU: TN-PR1IC970 Category: Combined networking antennas Brand:

Delivery time: 5–7 business days

Request a quote →

Delivery time and availability will be confirmed in your quote.

For longer lengths or custom cable lengths, please contact us.
Contact us / Request a quote ↗Product details are filled in automatically. Tell us the quantity or length you need.

Request a quote for this product

Request a quote with no obligation — no account needed.

Teltonika PR1IC970 – Outdoor LTE/Wi-Fi/GPS/Bluetooth Antenna For Rutx11 And Rutm11 Routers

Teltonika PR1IC970 – Outdoor LTE/Wi-Fi/GPS/Bluetooth Antenna For Rutx11 And Rutm11 RoutersSKU: TN-PR1IC970

Please include the model or order code, quantity and required regional version. We will confirm price, availability and delivery with your quote.

Teltonika PR1IC970 – Outdoor LTE/Wi-Fi/GPS/Bluetooth Antenna For Rutx11 And Rutm11 Routers

Manufacturer order code: PR1IC970

Technical specifications

MECHANICAL/ENVIRONMENTAL

Cable	5x RG316, 1x RG174
Operating temperature	-40 °C to 75 °C
Operating environment	This antenna is designed for stationary installations only and should not be used on moving objects or in high-vibration environments
Mounting method	Wall, ceiling, mast
IP rating	IP68
Weight	1500 g
RoHS compliant	✓

LTE ANTENNA

Frequency range	617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz
Polarisation	Vertical
Radiation pattern type	Omnidirectional
Gain	Max 4.5 dBi
VSWR	< 2.50
Impedance	50 Ω
Connector type and count	2x SMA male

BT ANTENNA

Frequency range	2200 ~ 2700 MHz
Polarisation	Vertical
Gain	2 dBi
VSWR	< 2.00
Impedance	50 Ω
Connector type and count	1x RP-SMA male

WI-FI ANTENNA

Frequency range	2400 ~ 2500, 4700 ~ 6000 MHz
Polarisation	Vertical
Radiation pattern type	Omnidirectional
Gain	Max 7.5 dBi
VSWR	< 2.00
Impedance	50 Ω
Connector type and count	2x RP-SMA male

GNSS ANTENNA

Frequency range	1560 ~ 1610 MHz
Polarisation	RHCP
Gain	28 dBi
VSWR	< 2.00
Impedance	50 Ω
Connector type and count	1x SMA male
Current consumption	2.5 - 6.5 mA
Supply voltage	2.5 - 6.5 VDC

Compatible models listed by the manufacturer

Documentation and downloads

Manufacturer page, datasheet and downloads

Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.

Manufacturer	Teltonika Networks
Manufacturer order code	PR1IC970
MECHANICAL/ENVIRONMENTAL – Cable	5x RG316, 1x RG174
MECHANICAL/ENVIRONMENTAL – Operating temperature	-40 °C to 75 °C
MECHANICAL/ENVIRONMENTAL – Operating environment	This antenna is designed for stationary installations only and should not be used on moving objects or in high-vibration environments
MECHANICAL/ENVIRONMENTAL – Mounting method	Wall, ceiling, mast
MECHANICAL/ENVIRONMENTAL – IP rating	IP68
MECHANICAL/ENVIRONMENTAL – Weight	1500 g
MECHANICAL/ENVIRONMENTAL – RoHS compliant	✓
Frequency range	617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz
Polarisation	Vertical
Radiation pattern type	Omnidirectional
Gain	Max 4.5 dBi
VSWR	< 2.50
Impedance	50 Ω
Connector type and count	2x SMA male
BT ANTENNA – Frequency range	2200 ~ 2700 MHz
BT ANTENNA – Gain	2 dBi
BT ANTENNA – VSWR	< 2.00
BT ANTENNA – Connector type and count	1x RP-SMA male
WI-FI ANTENNA – Frequency range	2400 ~ 2500, 4700 ~ 6000 MHz
WI-FI ANTENNA – Gain	Max 7.5 dBi
WI-FI ANTENNA – Connector type and count	2x RP-SMA male
GNSS ANTENNA – Frequency range	1560 ~ 1610 MHz
GNSS ANTENNA – Polarisation	RHCP
GNSS ANTENNA – Gain	28 dBi
GNSS ANTENNA – Connector type and count	1x SMA male
Current consumption	2.5 – 6.5 mA
