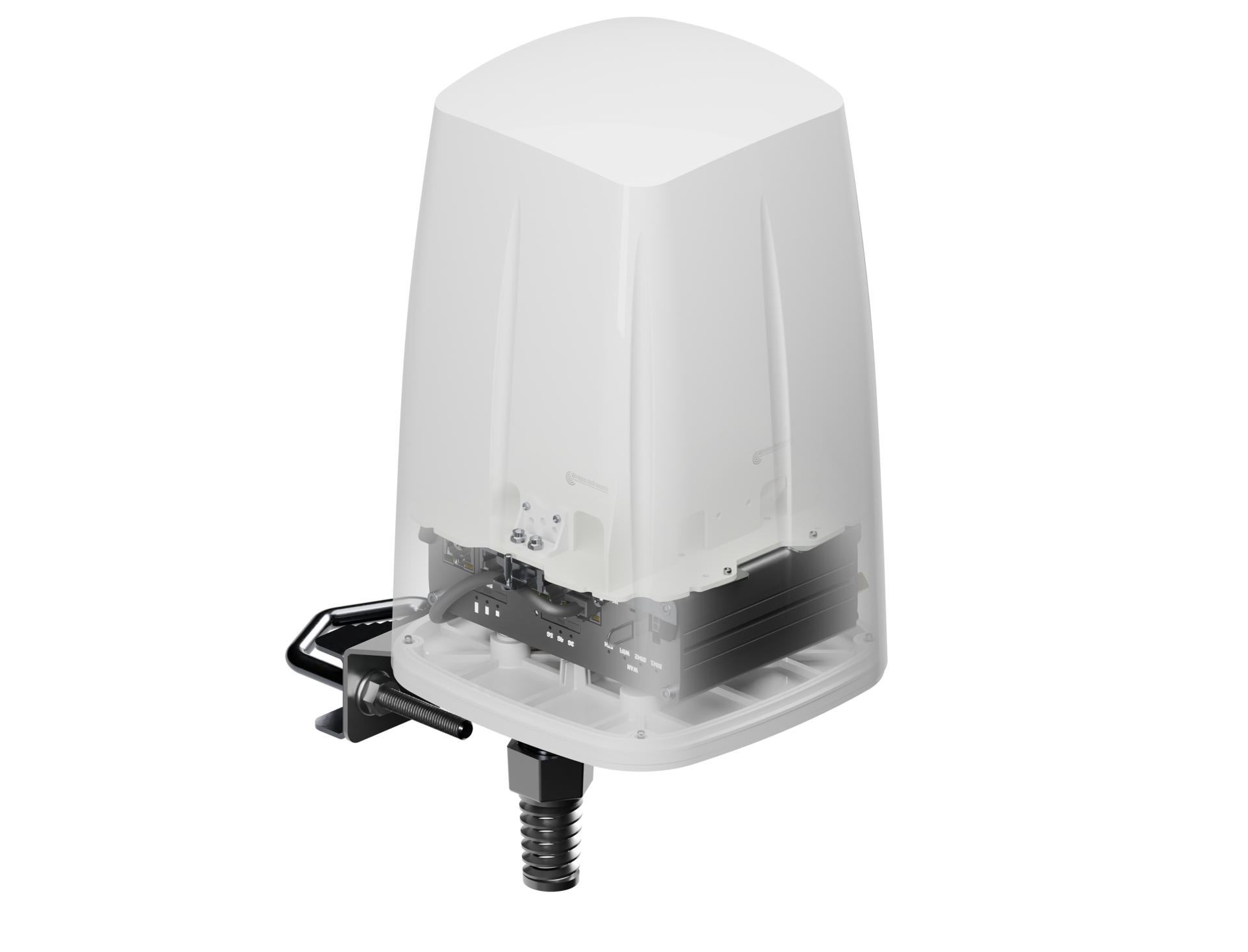

Teltonika PR1ICA70 – Outdoor LTE & 5G/Wi-Fi/GPS Antenna For Rutx50 And Rutm50 Routers
Manufacturer order code: PR1ICA70
Technical specifications
MECHANICAL/ENVIRONMENTAL
| Cable | 6x RG316, 1x RG174 |
|---|
| Operating temperature | -40 °C to 75 °C |
|---|
| Operating environment | This antenna is designed for stationary installations only and should not be used on moving objects or in high-vibration environments |
|---|
| Mounting method | Wall, ceiling, mast |
|---|
| IP rating | IP68 |
|---|
| Weight | 1500 g |
|---|
| RoHS compliant | ✓ |
|---|
| Note | RUTC50 compatibility limitation: using two of its three Wi-Fi antenna paths can reduce performance. Teltonika specifies connection to the left and right Wi-Fi connectors of the combo antenna; leave the middle connector unused. |
|---|
5G ANTENNA
| Frequency range | 617 ~ 960, 1700 ~ 2700, 3300 ~ 4300 MHz |
|---|
| Polarisation | Vertical |
|---|
| Radiation pattern type | Omnidirectional |
|---|
| Gain | Max 4.5 dBi |
|---|
| VSWR | < 2.50 |
|---|
| Impedance | 50 Ω |
|---|
| Connector type and count | 4x SMA male |
|---|
GNSS ANTENNA
| Frequency range | 1560 ~ 1610 MHz |
|---|
| Polarisation | RHCP |
|---|
| Gain | 28 dBi |
|---|
| VSWR | < 2.00 |
|---|
| Impedance | 50 Ω |
|---|
| Connector type and count | 1x SMA male |
|---|
| Current consumption | 2.5 - 6.5 mA |
|---|
| Supply voltage | 2.5 - 6.5 VDC |
|---|
WI-FI ANTENNA
| Frequency range | 2400 ~ 2500, 4700 ~ 6000 MHz |
|---|
| Polarisation | Vertical |
|---|
| Radiation pattern type | Omnidirectional |
|---|
| Gain | Max 7.5 dBi |
|---|
| VSWR | < 2.00 |
|---|
| Impedance | 50 Ω |
|---|
| Connector type and count | 2x RP-SMA male |
|---|
Compatible models listed by the manufacturer
RUTM50, RUTM54, RUTX50, RUTC50
Documentation and downloads
Manufacturer technical information checked on 17 October 2026. Check compatibility, connectors, electrical limits, package contents and the complete order code before selection. Price and availability are confirmed on enquiry.
